Challenger MT855C
|
|
| Production | |
| Manufacturer | Challenger (a part of AGCO) |
| Agricultural Crawler tractor | |
| Built in Jackson, Minnesota, USA | |
| Original price was $416,245 in 2013 | |
| Challenger MT855C Engine | |
| Caterpillar 15.1L 6-cyl diesel | |
| Fuel tank | 305 gal 1154.4 L |
 Engine details ... | |
| Challenger MT855C Transmission | |
| 16-speed full power shift | |
 Transmission details ... |
| Challenger MT855C Power | |
| Engine (gross) | 475 hp 354.2 kW |
| PTO (claimed) | 385 hp 287.1 kW |
| Drawbar (tested) | 358.14 hp 267.1 kW |
| PTO (tested) | 465.26 hp 346.9 kW |
 Performance test details ... | |
| Mechanical | |
| Drive | crawler |
| Steering | speed sensitive differential |
| Hydraulic wet discs brakes | |
| Trailer brakes | hydraulic OptOptional |
| Cab standard with air-conditioning. | |
| Photos | |
 | |

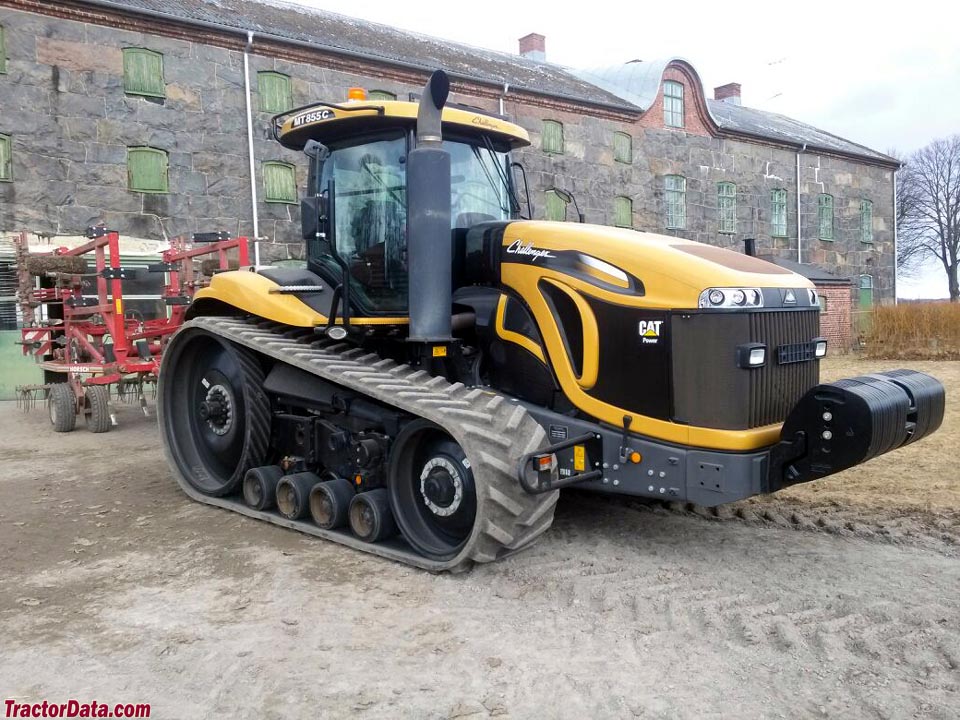

 Challenger MT855C photos... | |
| Hydraulics | |
| Type | closed center pressure-flow compensated |
| Pressure | 2900 psi 200.0 bar |
| Valves | 4 to 6 |
| SCV flow | 36 gpm 136.3 lpm |
| Total flow | 43.5 gpm 164.6 lpm |
| 59 gpmOptOptional 223.3 lpm | |
| Tractor hitch | |
| Rear Type | III/IVN |
| IV | |
| Rear lift | 19500 lbs 8845 kg |
| Power Take-off (PTO) | |
| Rear PTO | independent |
| Rear PTO Type | 1000 (1.75) |
| Dimensions & Tracks | |
| Wheelbase | 118 inches 299 cm |
| Weight | 41,000 lbs 18597 kg |
| 30-inch tracks | |
 Full dimensions and tracks ... | |
| Electrical | |
| Ground | negative |
| Charging system | alternator |
| Charging amps | 185 |
| Batteries | 4 |
| Battery CCA | 1000 |
| Battery volts | 12 |
| References | |
 | |
| Challenger MT800C/MT900C published in 2008, by AGCO |
