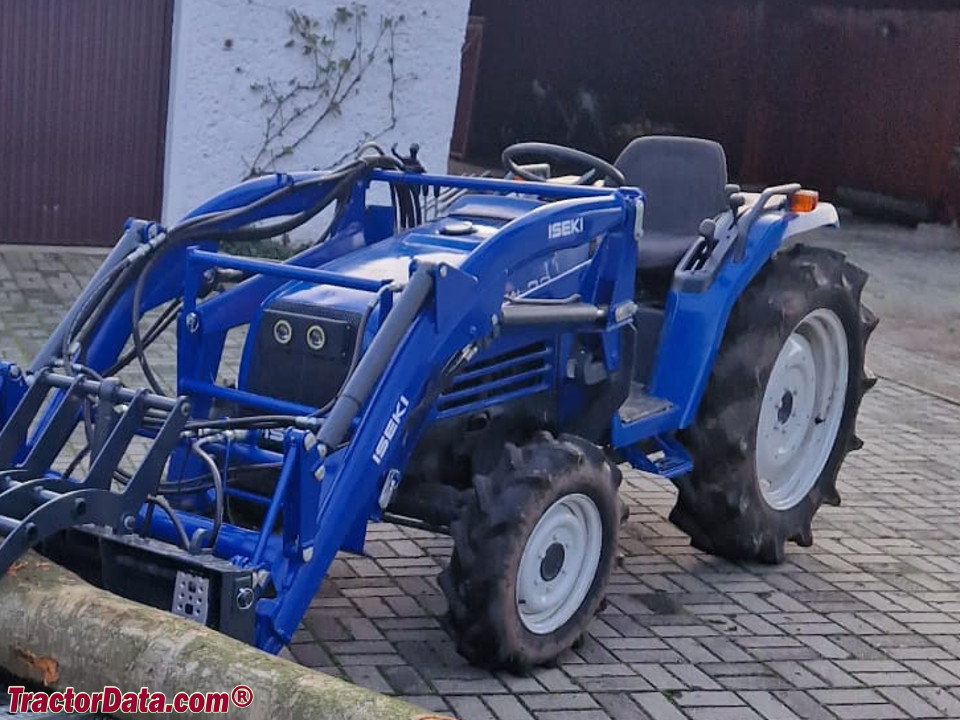

Iseki TF23F
| | 1995 - ???? |
| Sial Series | | Compact Utility tractor |
|
| Production |
| Manufacturer | Iseki
|
| Compact Utility tractor |
| Variants |
| TF23F-U | utility
|
| TF23HF | high-crop
|
| TF23NF | narrow
|
| Iseki TF23F Power |
| Engine | 22.7 hp
16.9 kW
|
| PTO (claimed) | 20.4 hp
15.2 kW
|
| Mechanical |
| Four-wheel drive |
| Two-post ROPS with canopy. Cab optional. Two-post folding ROPS on TF23NF. |
| Power Take-off (PTO) |
| Rear PTO Type | 540 (1.375)
|
| Engine RPM | 524@2500
|
| | 730@2500
|
| | 1269@2500
|
| Electrical |
| Ground | negative
|
| Battery volts | 12
|
| Battery AH | 55
|
| Page information |
 |
| Copyright 2024 TractorData.com® |
| TractorData is a family-owned small business located in Minnesota that has been providing reference information on tractors since 1999. |
| Peter Easterlund - owner/author |
| Email: Peter@TractorData.com |
| Updated on January 3, 2024 |
©2000-2024 - TractorData.com®. Notice: Every attempt is made to ensure the data listed
is accurate. However, differences between sources, incomplete listings,
errors, and data entry mistakes do occur.
Consult official
literature from the manufacturer before attempting any service or repair.
Engine details ...
Iseki TF23F photos...
Full dimensions and tires ...
