Iseki TA247

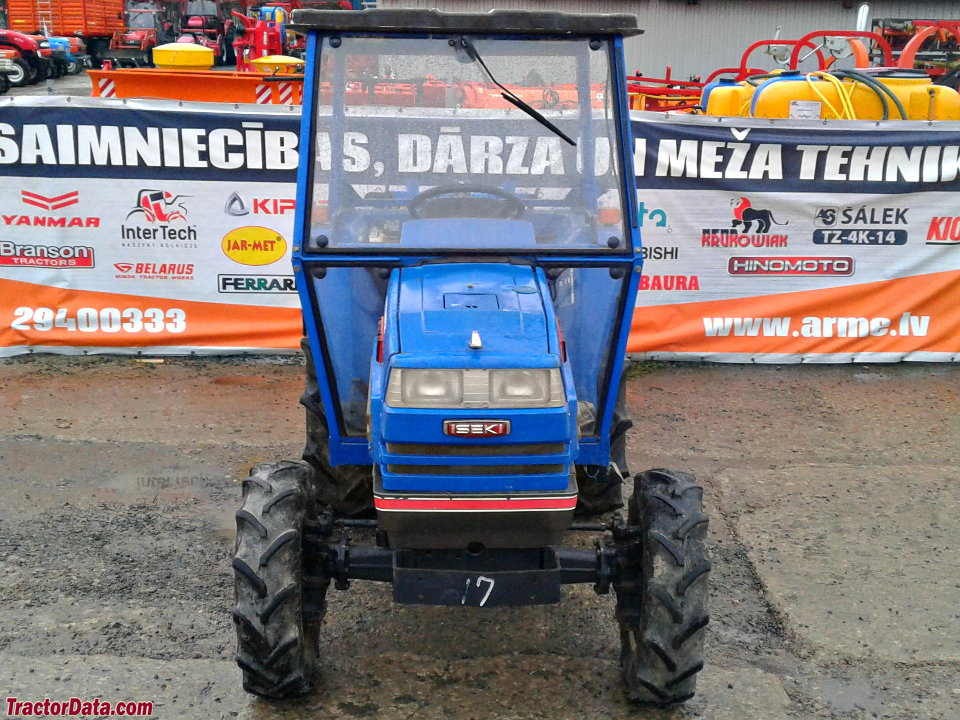

Iseki TA247 tractor photo
1989 - 1992
Landleader TA7 Series
Compact Utility tractor
Series map:
TA227
TA247
TA263
16.2kw
17.7kw
19.1kw
Production
ManufacturerIseki
Compact Utility tractor
Variants
TA247F4WD
Iseki TA247 Engine
Iseki 1.4L 3-cyl diesel
Fuel tank7.6 gal
28.8 L
Engine details ...
Iseki TA247 Power
Engine23.7 hp
17.7 kW
Mechanical
Two- or four-wheel drive
Open operator station. Cab optional.
Power Take-off (PTO)
Rear RPM540 (1.375)
Engine RPM565@2500
733@2500
1060@2500
1244@2500
Dimensions & Tires
Wheelbase63.6 inches
161 cm
Weight2260 to 2954 pounds
Front tire4.00-15
2WD Rear tire9.5-24
Full dimensions and tires ...
Electrical
Groundnegative
Battery volts12
References
TA247 references literature
Land Leader 7 Series published in 1993, by Iseki
