Iseki TX1300

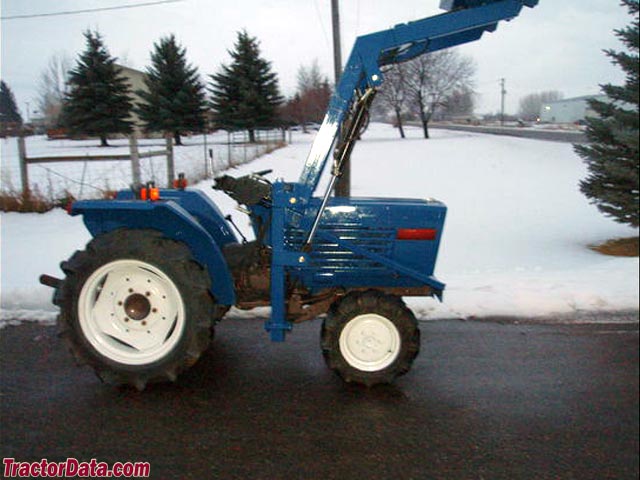

Iseki TX1300 tractor photo
1978 - 1981
Compact Utility tractor
Series:TX1000TX1300TX1500
Production
Manufacturer:Iseki
Type:Compact Utility tractor
Variants
TX1300F:4WD
Iseki TX1300 Power
Engine (gross):15 hp
11.2 kW
Iseki TX1300 Engine
Mitsubishi 0.7L 2-cyl diesel
Fuel tank:3.2 gal
12.1 L
Engine details ...
Mechanical
Chassis:4x2 2WD
 4x4 MFWD 4WD
Steering:manual
Brakes:drum
Cab:Open operator station.
Transmission:6-speed
Transmission details ...
Hydraulics
Pressure:1707 psi
117.7 bar
Total flow:2.7 gpm
10.2 lpm
Tractor hitch
Rear Type:JIS-0
Rear lift (at ends):838 lbs
380 kg
Power Take-off (PTO)
Rear RPM:540 (1.375)
Engine RPM:472@2700
752@2700
1177@2700
Dimensions & Tires
Wheelbase:48 inches
121 cm
Weight:1067 to 1124 pounds
Front tire:4.50-10
2WD Rear tire:8-16
Full dimensions and tires ...
Electrical
Ground:negative
Charging system:alternator
Charging amps:35
Battery volts:12
Battery AH:45
