Tractors > Hesston > 60-66

Hesston 60-66 Transmission



Hesston 60-66 tractor photo
1985 - 1991
66 Series
Utility tractor
Fiat built
Series:55-66 ← 60-66 → 70-66
Transmissions overview
12-speed partially synchronized
12-speed mechanical shuttle
20-speed creeper
Transmission
Type:partially synchronized
Gears:12 forward and 4 reverse
Four gears (1-4) in three ranges (I-III). Shifts between gears are synchronized.
Speeds
With 14.9-28 rear tires.

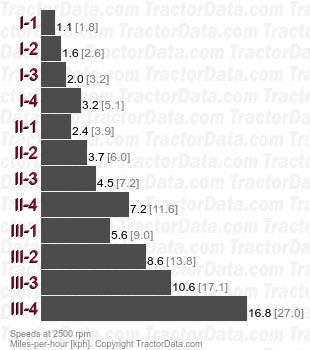

60-66 partially synchronized speeds
Transmission
Type:mechanical shuttle
Gears:12 forward and reverse
Four gears (1-4) in three ranges (I-III) with shuttle.
Speeds
With 14.9-28 rear tires.

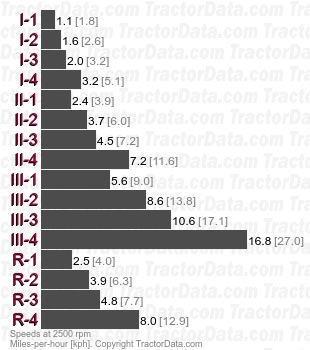

60-66 mechanical shuttle speeds
Transmission
Type:creeper
Gears:20 forward and 8 reverse
Four gears (1-4) in three ranges (I-III) with normal and creeper ranges.
Speeds

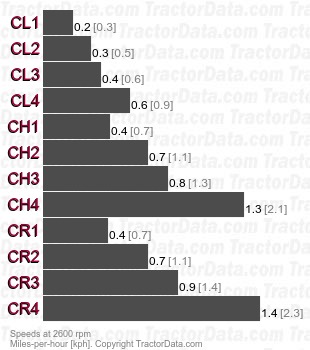

60-66 creeper speeds
