Tractors > Hesston > 55-66

Hesston 55-66 Transmission



Hesston 55-66 tractor photo
1985 - 1989
66 Series
Utility tractor
Series:55-66 → 60-66
Transmissions overview
12-speed partially synchronized
12-speed mechanical shuttle
20-speed creeper
Transmission
Type:partially synchronized
Gears:12 forward and 4 reverse
Four gears (1-4) in three ranges (I-III). Shifts between gears are synchronized.
Speeds
With 16.9-28 rear tires.

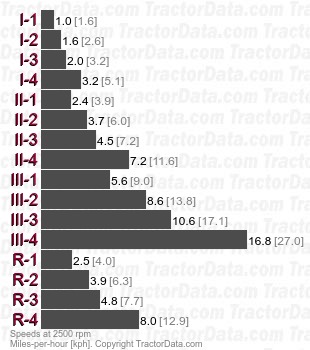

55-66 partially synchronized speeds
Transmission
Type:mechanical shuttle
Gears:12 forward and reverse
Four gears (1-4) in three ranges (I-III) with shuttle.
Speeds
With 16.9-28 rear tires.

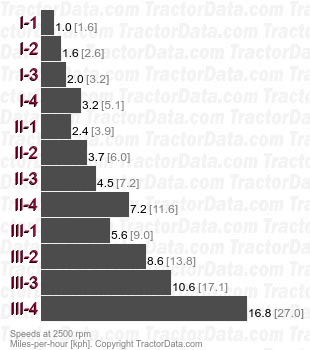

55-66 mechanical shuttle speeds
Transmission
Type:creeper
Gears:20 forward and 8 reverse
Four gears (1-4) in three ranges (I-III) with normal and creeper ranges.
Speeds

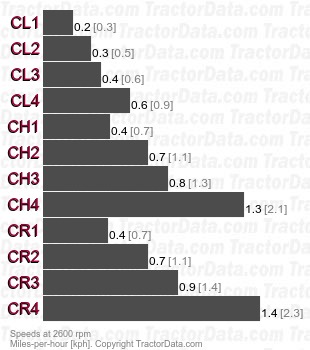

55-66 creeper speeds
