CaseIH Magnum 210

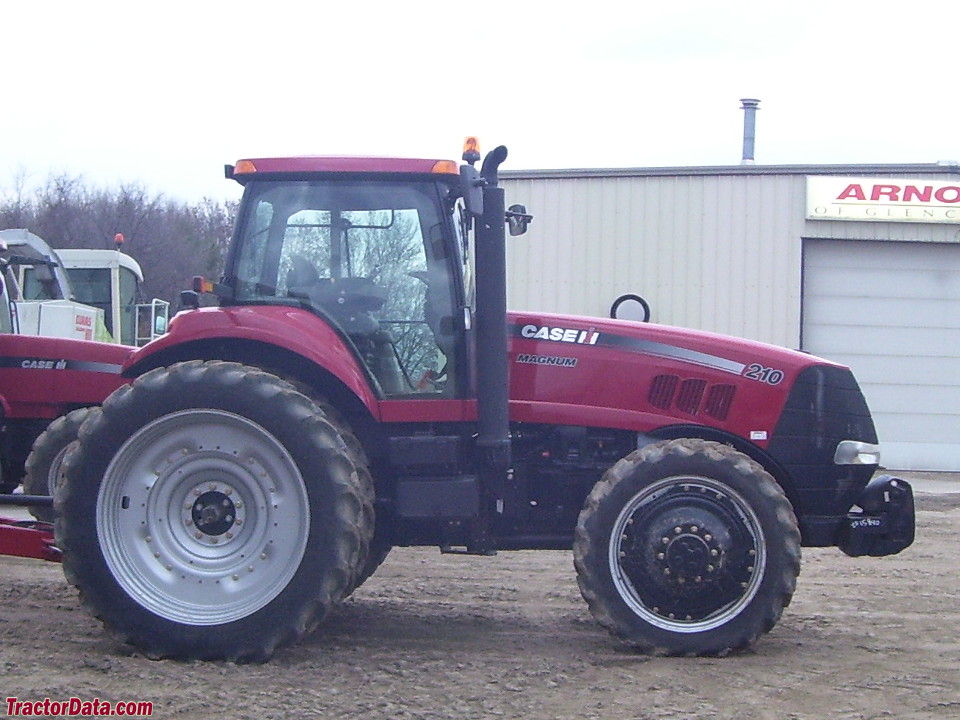

CaseIH Magnum 210 tractor photo
2009 - 2013
Model year
Magnum Series
Row-Crop tractor
Series:Magnum 190Magnum 210Magnum 225
Production
Manufacturer:CaseIH
Type:Row-Crop tractor
Factory:Racine, Wisconsin, USA
CaseIH Magnum 210 Power
Engine:210 hp
156.6 kW
PTO (claimed):180 hp
134.2 kW
Drawbar (tested):155.8 hp
116.2 kW
PTO (tested):203.0 hp
151.4 kW
power test details ...
CaseIH Magnum 210 Engine
FPT 6.7L 6-cyl diesel
Fuel tank:118 gal
446.6 L
Engine details ...
Mechanical
Chassis:4x4 MFWD 4WD
Steering:hydrostatic power
Brakes:differential hydraulic wet disc
Cab:Surveyor cab standard with air-conditioning.
Transmissions:18-speed full power shift
 19-speed full power shift
 continuously variable transmission (CVT)
Transmission details ...
Hydraulics
Type:Pressue Flow Compensated (PFC)
Valves:3 to 5
Total flow:39.6 gpm
149.9 lpm
Tractor hitch
Rear Type:II/III
Rear lift:12,787 lbs
5800 kg
 15,873 lbs
7199 kg *Optional
Power Take-off (PTO)
Rear PTO:independent
Rear RPM:540/1000 (1.375)
 1000 (1.75)
Electrical
Ground:negative
Charging system:alternator
Charging amps:150
 200 (optional)
