Kubota B3200


Kubota B3200 tractor photo
2008 - 2015
Compact Utility tractor
Production
Manufacturer:Kubota
Type:Compact Utility tractor
Original price:$15,008 (2011)
Kubota B3200 Power
Engine (gross):32 hp
23.9 kW
PTO (claimed):23 hp
17.2 kW
Kubota B3200 Engine
Kubota 1.5L 4-cyl diesel
Engine details ...
Mechanical
Chassis:4x4 MFWD 4WD
Steering:power
Brakes:wet disc
Cab:Two-post ROPS. Optional sunshade.
Transmission:hydrostatic
Transmission details ...
Capacity
Fuel:8.1 gal
30.7 L
Hydraulic system:3.8 gal
14.4 L
Hydraulics
Type:open center
Capacity:3.8 gal
14.4 L
Valves:0 to 2
Pump flow:6.7 gpm
25.4 lpm
Total flow:9.7 gpm
36.7 lpm
Steering flow:3.2 gpm
12.1 lpm
Tractor hitch
Rear Type:I
Rear lift (at ends):1,655 lbs
750 kg
Rear lift (at 24"/610mm):1,300 lbs
589 kg
Power Take-off (PTO)
Rear PTO:live
Rear RPM:540
Engine RPM:540@2600
Mid PTO:optional
Mid RPM:2500
Engine RPM:2500@2578
Dimensions & Tires
Wheelbase:65.6 inches
166 cm
Weight:1,764 lbs
800 kg
Front tire:7-12
Rear tire:12.4-16
Full dimensions and tires ...
Kubota B3200 attachments
60" mid-mount mower deck
72" mid-mount mower deck
front-end loader
backhoe
Attachment details ...
B3200 Serial Numbers

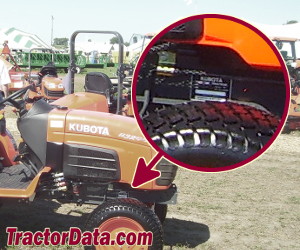

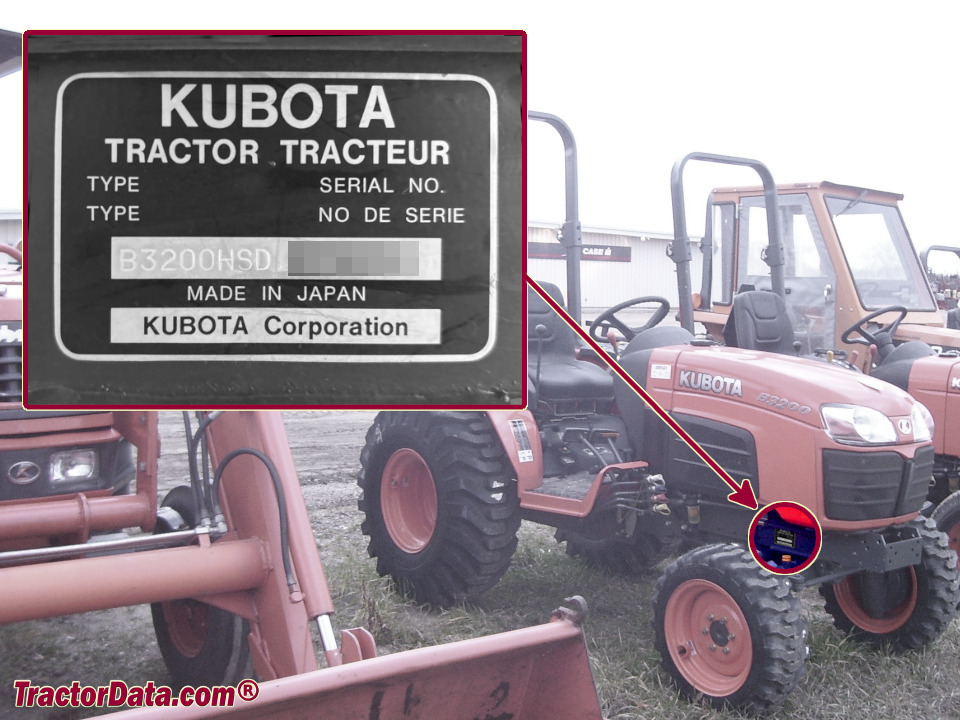

Location:Serial number on the right side of the tractor frame, above the front axle.
photo of B3200 serial number

Electrical
Ground:negative
Charging system:alternator
Charging amps:14.2
 40 (optional)
Battery volts:12
