John Deere 8345RT Engine


John Deere 8345RT tractor photo
2009 - 2010
Agricultural Crawler tractor
8430T
Series:8320RT8345RT
8360RT
Engine Detail
John Deere
turbocharged aftercooled diesel
6-cylinder 24-valve
liquid-cooled inline
Displacement:548 ci
9.0 L
Bore/Stroke:4.661x5.354 inches
118 x 136 mm
Emissions:Tier 3
 Stage IIIA
Rated Power (ECE R24):330 hp
246.1 kW
Rated Power (EC 97/98):345 hp
257.3 kW
Maximum Power (EC 97/68):378 hp
281.9 kW
Air cleaner:dual paper elements
Compression:16.3:1
Rated RPM:2100
Operating RPM:1500-2100
Starter:electric
Starter volts:12
Coolant capacity:42.3 qts
40.0 L
Engine Oil

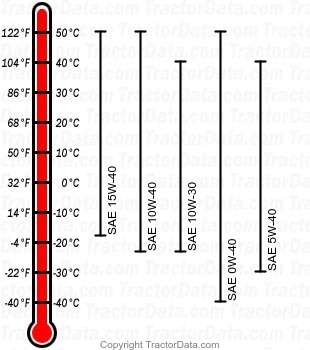

8345RT diesel engine oil chart
Oil capacity:27 qts
25.6 L
Oil change:250 h

 375 h
(JD Plus-50 II oil)
