John Deere 8320RT Engine


John Deere 8320RT tractor photo
2009 - 2010
Agricultural Crawler tractor
8330T
Series:8295RT8320RT8345RT
8335RT
Engine Detail
John Deere
turbocharged aftercooled diesel
6-cylinder 24-valve
liquid-cooled inline
Displacement:548 ci
9.0 L
Bore/Stroke:4.661x5.354 inches
118 x 136 mm
Emissions:Tier 3
 Stage IIIA
Rated Power (ECE R24):307 hp
228.9 kW
Rated Power (EC 97/98):320 hp
238.6 kW
Maximum Power (EC 97/68):347 hp
258.8 kW
Air cleaner:dual paper elements
Compression:16.3:1
Rated RPM:2100
Operating RPM:1500-2100
Starter:electric
Starter volts:12
Coolant capacity:42.3 qts
40.0 L
Engine Oil

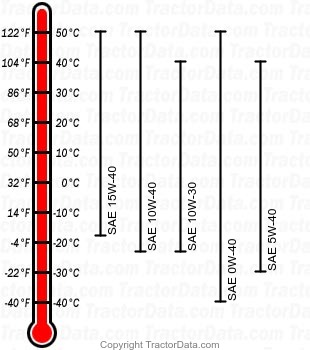

8320RT diesel engine oil chart
Oil capacity:27 qts
25.6 L
Oil change:250 h

 375 h
(JD Plus-50 II oil)
