John Deere 8345R
|
|
| Production | |
| Manufacturer | John Deere |
| Row-Crop tractor | |
| Built in Waterloo, Iowa, USA | |
| Variants | |
| 8345RT | crawler tractor |
| John Deere 8345R Engine | |
| John Deere 9.0L 6-cyl diesel | |
 Engine details ... |
| John Deere 8345R Power | |
| Engine (gross) | 345 hp 257.3 kW |
| Engine (net) | 330 hp 246.1 kW |
| PTO (claimed) | 284 hp 211.8 kW |
| Drawbar (tested) | 249.74 hp 186.2 kW |
| PTO (tested) | 325.01 hp 242.4 kW |
 Performance test details ... | |
| Mechanical | |
| Four-wheel drive | |
| Power steering | |
| Differential hydraulic wet disc brakes | |
| CommandView cab standard with heat and air-conditioning. Optional automatic temperature controls, electronically-controlled mirrors, sun shades, instructor seat, and front/rear windshield wipers. |
| Photos | |
 | |
 John Deere 8345R photos... | |
| Capacity | |
| Fuel | 180 gal 681.3 L |
| Hydraulic system | 40 gal 151.4 L |
| 42 gal (ILS) 159.0 L | |
| Hydraulics | |
| Type | closed center, pressrue and flow compensated |
| Capacity | 40 gal 151.4 L |
| 42 gal (ILS) 159.0 L | |
| Pressure | 2900 psi 200.0 bar |
| Valves | 3 to 5 |
| Pump flow | 35 gpm 132.5 lpm |
| Total flow | 44 gpm 166.5 lpm |
| 60 gpm (optional) 227.1 lpm | |
| Tractor hitch | |
| Rear Type | IVN/III |
| Rear lift (at 24"/610mm) | 18,300 lbs 8300 kg |
| Front Hitch | optional with ILS |
| Front lift | 11,000 lbs 4989 kg |
| Power Take-off (PTO) | |
| Rear PTO | independent |
| Rear PTO Type | 1000 (1-3/4) |
| 540/1000 (1-3/8 optional) | |
| Dimensions & Tires | |
| Wheelbase | 120.1 inches 305 cm |
| 118.9 inches (ILS) 302 cm | |
| Weight | 25868 to 28902 pounds |
| Front tire | 420/85R34 |
| Rear tire | 480/80R50 |
 Full dimensions and tires ... | |

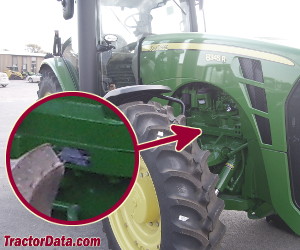

| 8345R Serial Number Location | |
 | |
| Serial number plate on the front-right of the tractor frame, above the front axle. |
| Electrical | |
| Ground | negative |
| Charging system | alternator |
| Charging amps | 200 |
| Batteries | 2 |
| Battery CCA | 925 |
| Battery volts | 12 |
| References | |
 | |
| 8R/8RT Series published in 2009, by John Deere | |
| 8R/8RT Series - Top 10 Feature & Benefits, plus Tractor Optimization Tips published in 2009, by John Deere |
