John Deere 8320R Engine


John Deere 8320R tractor photo
2009 - 2010
8R Series
Row-Crop tractor
8430
Series:8295R8320R8345R
8335R
Engine Detail
John Deere
variable geometry turbocharger diesel
6-cylinder 24-valve
liquid-cooled inline
Displacement:548 ci
9.0 L
Bore/Stroke:4.661x5.354 inches
118 x 136 mm
Emissions:Tier 3
 Stage IIIA
Rated Power (ECE R24):307 hp
228.9 kW
Rated Power (EC 97/98):320 hp
238.6 kW
Air cleaner:dual paper elements
Compression:16.3:1
Rated RPM:2100
Operating RPM:1500-2100
Starter volts:12
Coolant capacity:42.3 qts
40.0 L
Engine Oil

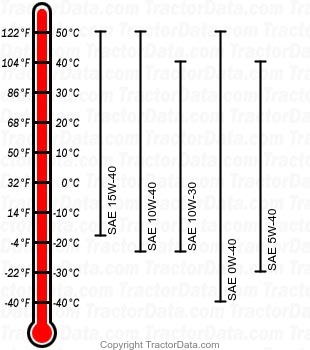

8320R diesel engine oil chart
Oil capacity:29.5 qts
27.9 L
