John Deere 8245R Engine


John Deere 8245R tractor photo
2009 - 2010
8R Series
Row-Crop tractor
8230
Series:8225R8245R8270R
8260R
Engine Detail
John Deere
variable geometry turbocharged diesel
6-cylinder 24-valve
liquid-cooled inline
Displacement:548 ci
9.0 L
Bore/Stroke:4.661x5.354 inches
118 x 136 mm
Emissions:Tier 3
 Stage IIIA
Rated Power (ECE R24):237 hp
176.7 kW
Rated Power (EC 97/98):245 hp
182.7 kW
Air cleaner:dual paper elements
Compression:16.3:1
Rated RPM:2100
Operating RPM:1500-2100
Starter volts:12
Coolant capacity:42.3 qts
40.0 L
Engine Oil

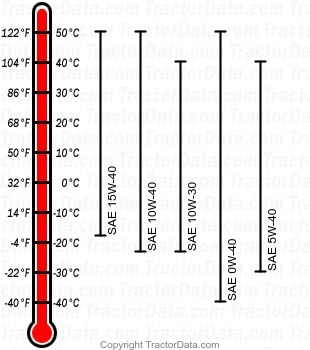

8245R diesel engine oil chart
Oil capacity:26.4 qts
25.0 L
Page information
Last update:June 25, 2014
Copyright:Copyright 2021 TractorData LLC
Contact:Peter@TractorData.com
©2000-2021 - TractorData.com®. Notice: Every attempt is made to ensure the data listed is accurate. However, differences between sources, incomplete listings, errors, and data entry mistakes do occur. Consult official literature from the manufacturer before attempting any service or repair.
