Tractors > John Deere > 8225R

John Deere 8225R Engine



John Deere 8225R tractor photo
2009 - 2010
8R Series
Row-Crop tractor
Series map:
8225R
8245R
225.0hp
245.0hp
Engine Detail
John Deere
variable geometry turbocharged diesel
6-cylinder 24-valve
liquid-cooled inline
Displacement548 ci
9.0 L
Bore/Stroke4.661x5.354 inches
118 x 136 mm
EmissionsTier 3
 Stage IIIA
Rated Power (net)218 hp
162.6 kW
Rated Power (gross)225 hp
167.8 kW
Air cleanerdual paper elements
Compression16.3:1
Rated RPM2100
Operating RPM1500-2100
Starter volts12
Coolant capacity42.3 qts
40.0 L
Engine Oil

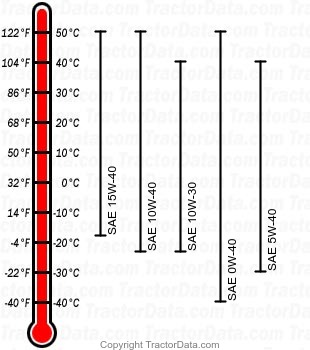

8225R diesel engine oil chart
Oil capacity26.4 qts
25.0 L
