Kubota X-20

Kubota X-20 tractor photo
1987 - 1992
Compact Utility tractor
Series map:
Compact Utility tractor
Built in Japan
Kubota X-20 Engine
Kubota 1.3L 4-cyl diesel
Fuel tank7.1 gal
26.9 L
Engine details ...
Kubota X-20 Power
Engine19.7 hp
14.7 kW
Four-wheel drive
Open operator station. Half-cab available.
No photos of the Kubota X-20 are currently available. To submit yours, email it to Peter@TractorData.com. Photos may only be used with the permission of the original photographer.
Tractor hitch
Rear TypeJIS0
Power Take-off (PTO)
Rear PTO Type540 (1.375)
Engine RPM554@2600
Dimensions & Tires
Wheelbase57.1 inches
145 cm
Weight1775 lbs
805 kg
Front tire6-14
Rear tire8.3R-22
Full dimensions and tires ...

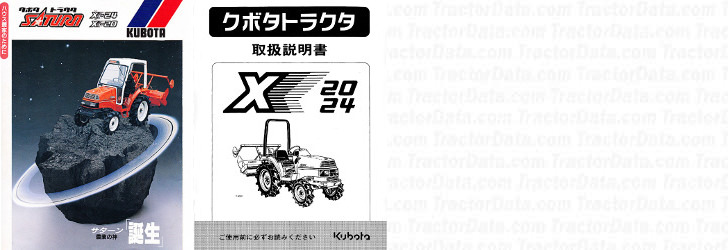

X-20 references literature
Saturn X-24 X-20 published by Kubota
Instruction Manual X 20 24 (37410-8113-8)
