Tractors > John Deere > 6100D

John Deere 6100D Engine



John Deere 6100D tractor photo
2008 - 2012
6D Series
Utility tractor
Series map:
6100D
6115D
98.9hp
118.4hp
Engine Detail
John Deere 4045T PowerTech
turbocharged diesel
4-cylinder 8-valve
liquid-cooled
Displacement276 ci
4.5 L
Bore/Stroke4.20x5.00 inches
107 x 127 mm
EmissionsTier 1
Rated Power (gross)98.9 hp
73.7 kW
Fuel systemrotary mechanical injection
Air cleanertwo paper elements
Compression17:1
Rated RPM2100
Idle RPM850-2275
Torque274 lb-ft
371.5 Nm
Torque RPM1400
Firing order1-3-4-2
Starter volts12
Coolant capacity17.4 qts
16.5 L
Intake valve clearance0.014 inches
0.356 mm
Exhaust valve clearance0.018 inches
0.457 mm
Engine Oil

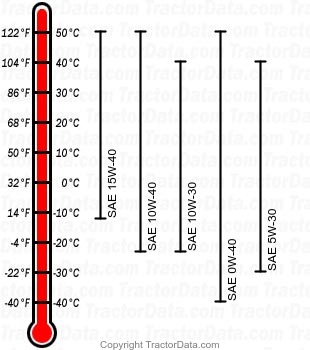

6100D diesel engine oil chart
Oil capacity15.85 qts
15.0 L
Oil change250 h
 500 h (JD TorqGARD oil)
