Tractors > John Deere > 5055E

John Deere 5055E



John Deere 5055E tractor photo
2008 - 2022
Model year
5E Series
Utility tractor
Series map:
5045E
5055E
5065E
45.0hp
55.0hp
65.0hp
Production
ManufacturerJohn Deere
Utility tractor
Built in Pune, Maharashtra, India
Variants
5055D2WD Economy
5055E4WD Mid-spec
John Deere 5055E Engine
John Deere 2.9L 3-cyl diesel
Engine details ...
John Deere 5055E Transmission
9-speed partially synchronized
Transmission details ...
John Deere 5055E Power
Engine (gross)55 hp
41.0 kW
PTO (claimed)45 hp
33.6 kW
PTO (tested)49.95 hp
37.2 kW
Performance test details ...
Mechanical
Four-wheel drive
Final drivesplanetary
Differential lockrear diff lock standard
Power steering
Hydraulic wet disc brakes
Folding 2-post ROPS
Photos

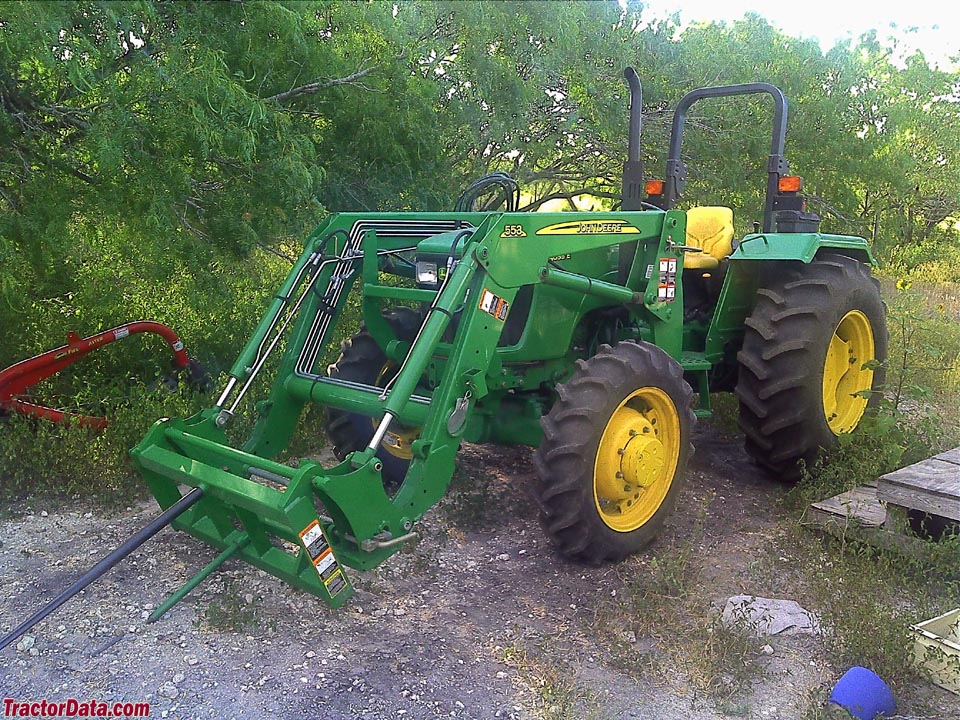

John Deere 5055E with front loader and bale spear
John Deere 5055E photos...
Capacity
Fuel18 gal
68.1 L
Hydraulic system10.3 gal
39.0 L
Front axle4.8 qts
4.5 L
Front hubs0.85 qts (each)
0.8 L
Hydraulics
Typeopen center
Capacity10.3 gal
39.0 L
Pressure2828 psi
195.0 bar
Rear valves1 or 2
Mid valves2
Pump flow11.4 gpm
43.1 lpm
Total flow18.2 gpm
68.9 lpm
Steering flow6.8 gpm
25.7 lpm
Steering press.1958 psi
135.0 bar
Tractor hitch
Rear Type2
Controlposition and top-link draft control
Rear lift (at 24"/610mm)3,192 lbs
1447 kg
Power Take-off (PTO)
Rear PTOindependent
Clutchmechanical
Rear PTO Type540
Dimensions & Tires
Wheelbase80.7 inches
204 cm
Weight5070 to 5505 pounds
Front tire9.5-24
Rear tire14.9-28
Full dimensions and tires ...
John Deere 5055E attachments
front-end loader
Attachment details ...
Electrical
Groundnegative
Charging systemalternator
Charging amps40
Battery CCA623
Battery volts12
References
5055E references literature
New 5 Series Utility Tractors published in 2009, by John Deere
5 Series published in 2009, by John Deere
5D - 5E - 5E Limited Tractors published in 2012, by John Deere
