CaseIH Farmall 45

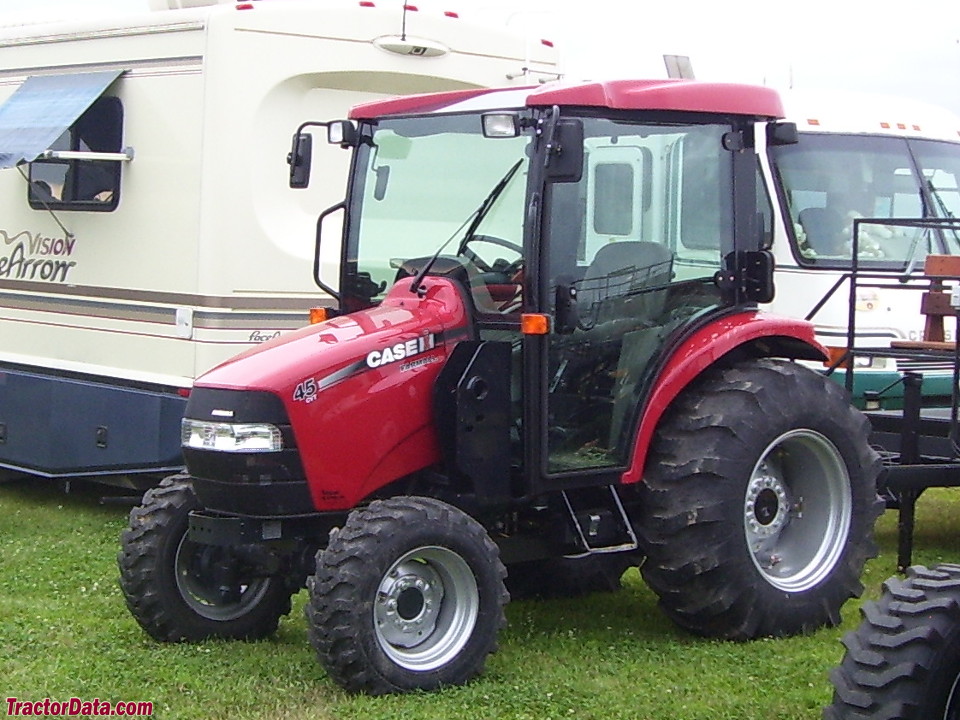

CaseIH Farmall 45 tractor photo
2008 - 2011
Farmall Compact Series
Compact Utility tractor
Shibaura built
DX45
Series:Farmall 40Farmall 45Farmall 50
Production
Distributor:CaseIH
Manufacturer:Shibaura
Type:Compact Utility tractor
Factory:Dublin, Georgia, USA
Original price:$25,677 (2011 shuttle ROPS )
Original price:$30,477 (2011 hydro ROPS )
Original price:$38,932 (2011 CVT cab )
CaseIH Farmall 45 Power
Engine (gross):45 hp
33.6 kW
PTO (claimed):39.6 hp
29.5 kW (gear)
 37.8 hp
28.2 kW (hydro)
 36 hp
26.8 kW (CVT)
CaseIH Farmall 45 Engine
Shibaura 2.2L 4-cyl diesel
Fuel tank:13 gal
49.2 L
Engine details ...
Mechanical
Chassis:4x4 MFWD 4WD
Steering:hydrostatic power
Brakes:wet disc
Cab:Two-post foldable ROPS. Cab optional with air-conditioning.
Transmissions:12-speed
 hydrostatic
 continuously variable transmission
Transmission details ...
Hydraulics
Type:open center
Pump flow:9.8 gpm
37.1 lpm
Total flow:14.9 gpm
56.4 lpm
Steering flow:5.1 gpm
19.3 lpm
Tractor hitch
Rear Type:I
Control:position control
Rear lift (at 24"/610mm):2,330 lbs
1056 kg
 2,800 lbs
1270 kg (CVT)
Power Take-off (PTO)
Rear PTO:independent
Rear RPM:540
Mid PTO:optional with hydro/CVT
Mid RPM:2000
Dimensions & Tires
Wheelbase:73.5 inches
186 cm
Weight:3454 to 4491 pounds
Front tire:8-16
Rear tire:14.9-24
Full dimensions and tires ...
Electrical
Ground:negative
Charging system:alternator
Charging amps:40 (ROPS)
 55 (cab)
 75 (cab optional)
Battery CCA:600
Battery volts:12
