Tractors > Kubota > M8540 Power Krawler

Kubota M8540 Power Krawler

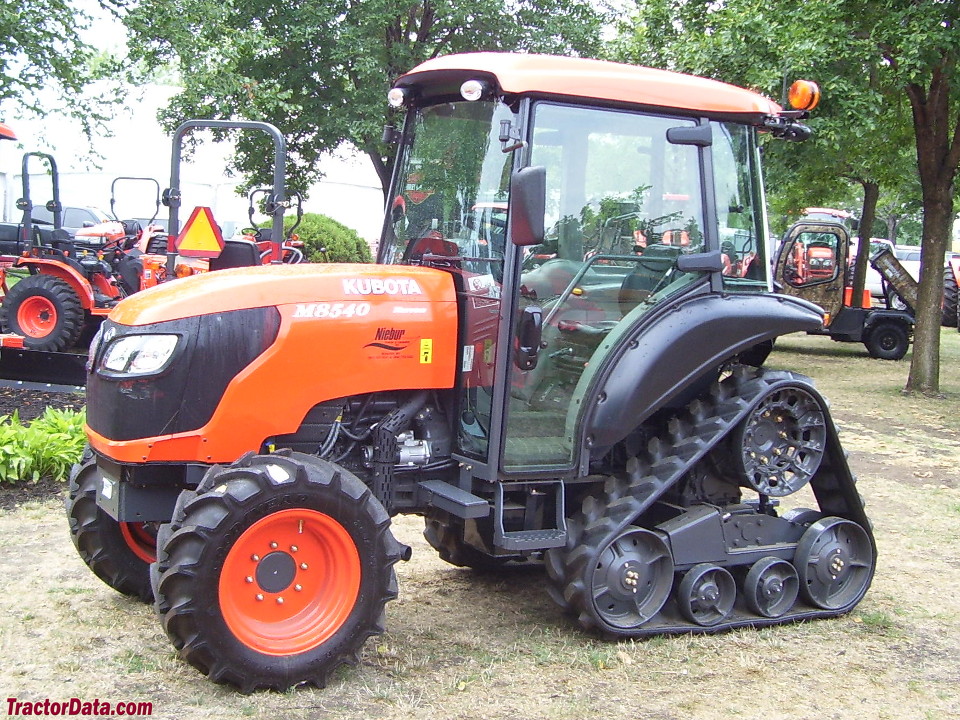

Kubota M8540 Power Krawler tractor photo
2008 -






Production:

Manufacturer:Kubota
Original price (USD):$53,523


Variants:

M8540:wheeled tractor
M8540HDNBPC:Power Krawler half-track


Kubota M8540 Power Krawler Engine:

   Kubota 3.8L 4-cyl diesel
full engine details ...


Capacity:

Fuel:18.5 gal [70.0 L]
Hydraulic system:10.6 gal [40.1 L]
Front axle:8.5 qts [8.0 L]


3-Point Hitch:

Rear Type:II/I
Rear lift (at ends):4,200 lbs [1905 kg]
Rear lift (at 24"/610mm):3,307 lbs [1500 kg]


Power Take-off (PTO):

Rear PTO:independent
Rear RPM:540 (1.375)
Engine RPM:540@2160


Dimensions & Tires:

Wheelbase:84.8 inches [215 cm]
Weight:6,504 lbs [2950 kg]
Front tire:9.5-16
Rear tire:tracks
full dimensions and tires ...


Kubota M8540 Power Krawler attachments:

 front-end loader
all M8540 Power Krawler attachments ...


M8540 Power Krawler Serial Numbers:


- Serial numbers unknown -



Kubota M8540 Power Krawler Power:

Engine (net):85.5 hp [63.8 kW]
PTO (claimed):76 hp [56.7 kW]


Mechanical:

Chassis:half-track
Steering:hydrostatic power
Brakes:mechanical wet disc
Cab:Cab standard with heat and air-conditioning. Optional radio/CD-player.


Hydraulics:

Type:open center
Capacity:10.6 gal [40.1 L]
Pressure:2770 psi [191.0 bar]
Valves:1 to 3
Pump flow:11 gpm [41.6 lpm]
Total flow:17.1 gpm [64.7 lpm]
Steering flow:6.1 gpm [23.1 lpm]


Electrical:

Ground:negative
Charging system:alternator
Charging amps:60
 80 (optional)


Battery:

Number:1
Cold-cranking amps:900
Volts:12
