White 1470
|
|
| Production | |
| Distributor | White |
| Manufacturer | Fiat |
| Utility tractor | |
| Original price was $11,000 in 1975 | |
| The White 1470 was built by Fiat, and is based on the Fiat 750. The tractor was also sold under the Cockshutt and Oliver brands which were owned by White at that time. | |
| White 1470 Engine | |
| OM 4.6L 4-cyl diesel | |
 Engine details ... |
| White 1470 Transmission | |
| 7-speed gear | |
 Transmission details ... |
| White 1470 Power | |
| Engine | 77 hp 57.4 kW |
| Drawbar (claimed) | 58 hp 43.3 kW |
| PTO (claimed) | 70 hp 52.2 kW |
| Mechanical | |
| Two-wheel drive | |
| Steering | power |
| Disc brakes | |
| Open operator station. Optional ROPS and canopy. | |

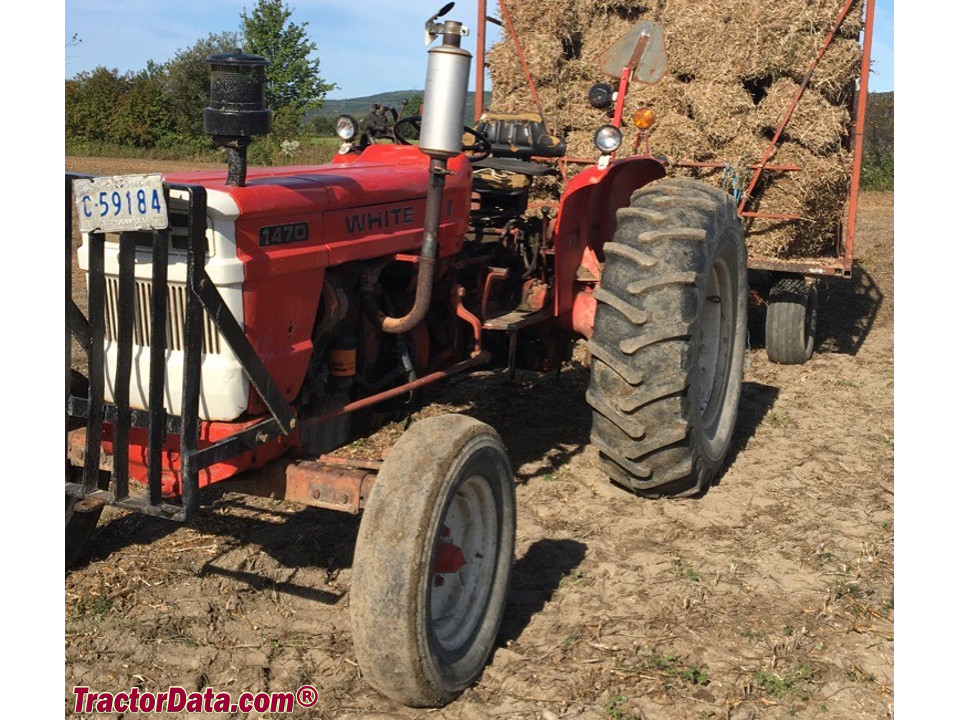

| Photos | |
 | |
 White 1470 photos... | |
| Hydraulics | |
| Pressure | 2135 psi 147.2 bar |
| Total flow | 6.2 gpm 23.5 lpm |
| Tractor hitch | |
| Rear Type | I/II |
| Power Take-off (PTO) | |
| Rear PTO | independent |
| Rear PTO Type | 540 |
| Dimensions & Tires | |
| Wheelbase | 92.75 inches 235 cm |
| Weight | 6700 lbs 3039 kg |
| Front tire | 7.50-18 |
| Rear tire | 18.4-30 |
 Full dimensions and tires ... | |
| 1470 Serial Numbers | |
| Location: | Below instrument panel. |
| 1973 | 827183 |
| 1974 | 827580 |
| 1975 | 839424 |
| Final | 839487 |
FAQ: How to read a serial number table. | |
| References | |
 | |
| Power Pointers White 1465/1470 |
