Tractors > CaseIH > Steiger 485

CaseIH Steiger 485 Engine



CaseIH Steiger 485 tractor photo
2008 - 2010
Four-wheel Drive (4WD) tractor
Series map:
Steiger 435
Steiger 485
Steiger 535
435.0hp
485.0hp
535.0hp
Engine Detail
Iveco
turbocharged diesel
6-cylinder 24-valve
liquid-cooled
Displacement786 ci
12.9 L
Bore/Stroke5.315x5.906 inches
135 x 150 mm
EmissionsTier 3
Power485 hp
361.7 kW
Maximum Power534 hp
398.2 kW
Air cleanerdual paper elements
Compression16.5:1
Rated RPM2000
Starter volts24
Engine Oil

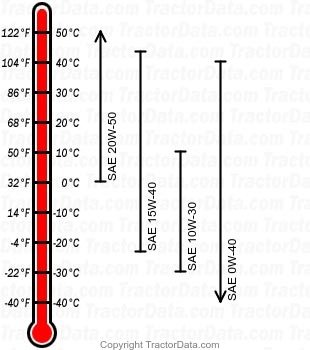

Steiger 485 diesel engine oil chart
Oil capacity32.8 qts
31.0 L
