CaseIH Steiger 435 Tests


CaseIH Steiger 435 tractor photo
2008 - 2010
Four-wheel Drive (4WD) tractor
Steiger 430
Series:Steiger 385Steiger 435Steiger 485
Steiger 450
OCED Tractor Test 1909

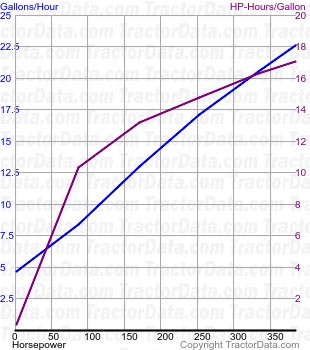

Steiger 435 fuel use from test 557
OCED Tractor Test 1909
Diesel 16-speed crawler
September 25 - October 12, 2007
Link: OCED Tractor Test 1909 file
PTO performance
Max power:438.97 hp
327.3 kW
Fuel use:24.5 gal/hour
92.7 l/hour
Power at rated engine speed:384.59 hp
286.8 kW
Fuel use:22.5 gal/hour
85.2 l/hour
Drawbar performance
Max power:351.28 hp
261.9 kW
Fuel use:22.1 gal/hour
83.6 l/hour
Gear 6 used for power test.
Max pull:36,669 lbs
16633 kg
Gear 2 used for pull test.
