Leyland 344

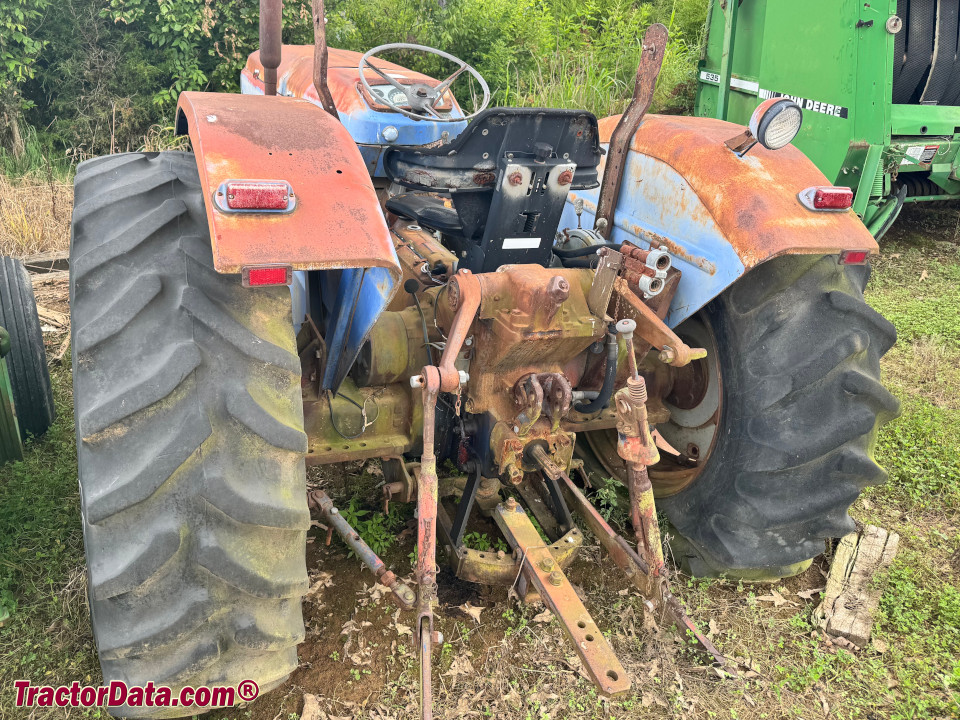

Leyland 344 tractor photo
Utility tractor
Utility tractor
Leyland 344 Engine
BMC 3.4L 4-cyl diesel
Fuel tank18 gal
68.1 L
Engine details ...
Leyland 344 Power
Engine59 hp
44.0 kW
PTO (claimed)43 hp
32.1 kW
Two-wheel drive
Final drivesbull gear
Manual steering
Disc brakes
Open operator station.
No photos of the Leyland 344 are currently available. To submit yours, email it to Peter@TractorData.com. Photos may only be used with the permission of the original photographer.
Typeopen center
Rear valves2
Pump flow7.8 gpm
29.5 lpm
Tractor hitch
Rear TypeII/I
Controldraft control
Rear lift3350 lbs
1519 kg
Power Take-off (PTO)
Rear RPM540 (1.375)
Engine RPM540@1812
Dimensions & Tires
Wheelbase80 inches
203 cm
Weight5376 lbs
2438 kg
Front tire6.00-16
Rear tire12.4/11-32
Full dimensions and tires ...
Charging systemgenerator
 alternator OptOptional
Charging amps18 (generator)
 28 (alternator)
Battery volts12
Battery AH120
344 references literature
344 published in 1970, by Leyland
