AGCO RT165A
|
|
| Production | |
| Manufacturer | AGCO |
| Row-Crop tractor | |
| Built in Beauvais, France | |
| Original price was $112,716 in 2009 with Auto-6 | |
| The AGCO RT165A is the same as the Massey Ferguson 6497. | |
| AGCO RT165A Engine | |
| SisuDiesel 7.4L 6-cyl diesel | |
| Fuel tank | 100 gal 378.5 L |
 Engine details ... | |
| AGCO RT165A Transmissions | |
| 24-speed partial power shift | |
| continuously variable transmission | |
 Transmission details ... |
| AGCO RT165A Power | |
| Engine | 200 hp 149.1 kW |
| PTO (claimed) | 165 hp 123.0 kW |
| Drawbar (tested) | 149.8 hp 111.7 kW |
| PTO (tested) | 182.4 hp 136.0 kW |
 Performance test details ... | |
| Mechanical | |
| Four-wheel drive | |
| Differential lock | electro-hydraulc front and rear |
| Power steering | |
| Hydraulic wet disc brakes | |
| Trailer brakes | hydraulic optional |
| Cab standard. Optional Airmaxx pneumatic cab suspension and automatic climate control. | |

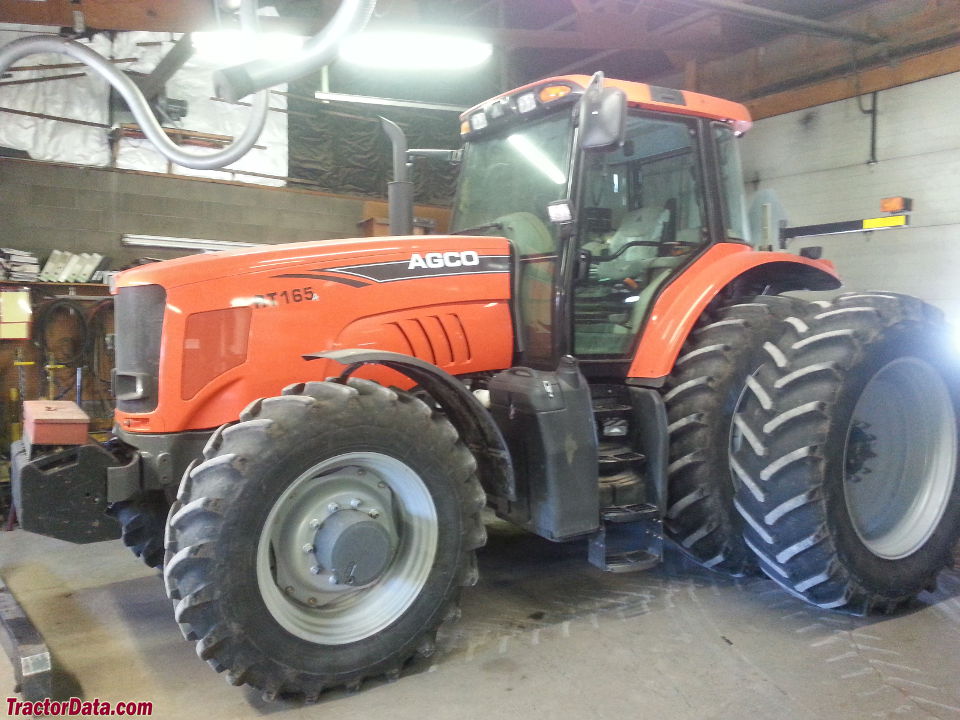

| Photos | |
 | |
 AGCO RT165A photos... | |
| Hydraulics | |
| Type | closed center pressure flow compensated (PFC) |
| Pressure | 2900 psi 200.0 bar |
| Valves | 3 to 5 |
| Total flow | 29 gpm 109.8 lpm |
| 39 gpmOptOptional 147.6 lpm | |
| Tractor hitch | |
| Rear Type | 3/3N |
| Control | electronic position and lower-link draft control |
| Rear lift (at 24"/610mm) | 15,700 lbs 7121 kg |
| Front Hitch | 2/3 (optional) |
| Front lift | 8,800 lbs 3991 kg |
| Power Take-off (PTO) | |
| Rear PTO | independent |
| Rear PTO Type | 540/540E/1000 |
| Front PTO | optional |
| Front PTO Type | 1000 |
| Dimensions & Tires | |
| 2WD Wheelbase | 115.95 inches 294 cm |
| 4WD Wheelbase | 118.6 inches 301 cm |
| Weight | 17,200 lbs 7801 kg |
| Front tire | 420/90R30 |
| Rear tire | 480/80R46 (4WD) |
 Full dimensions and tires ... | |
| Electrical | |
| Ground | negative |
| Charging system | alternator |
| Charging amps | 175 |
| Batteries | 2 |
| Battery CCA | 550 |
| Battery volts | 12 |
