AGCO RT120A

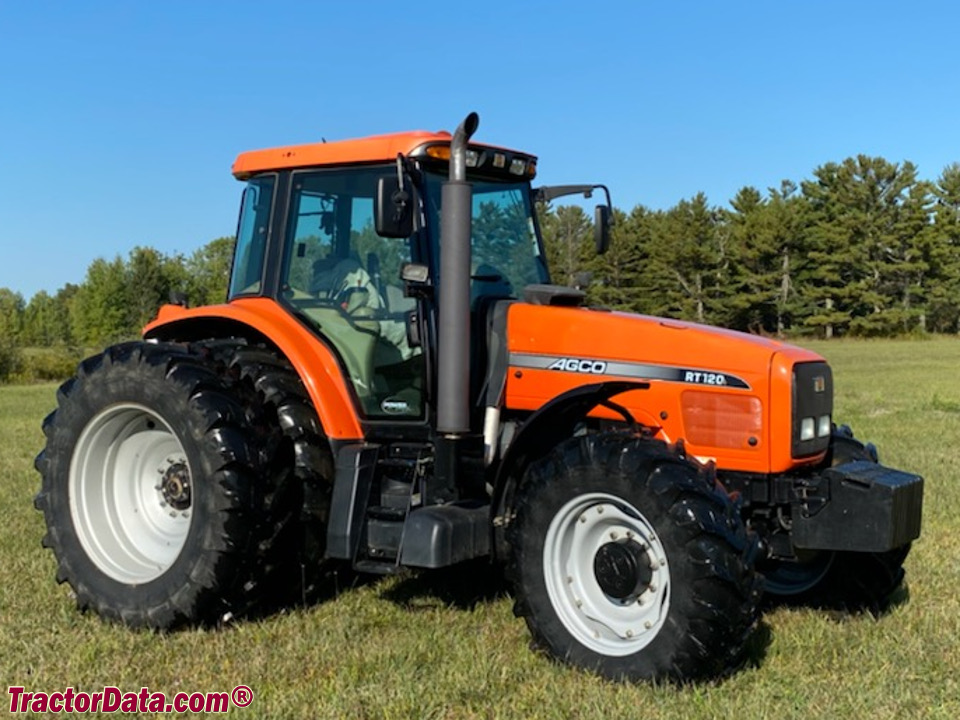

AGCO RT120A tractor photo
2006 - 2011
RT-A Series
Row-Crop tractor
RT120
Series:RT110ART120ART140A
Production
Manufacturer:AGCO
Type:Row-Crop tractor
Factory:Beauvais, France
Original price:$81,782 (2009 Auto-6 2WD )
Original price:$91,009 (2009 Auto-6 4WD )
Original price:$98,005 (2009 CVT 4WD )
AGCO RT120A Power
Engine:145 hp
108.1 kW
PTO (claimed):120 hp
89.5 kW
Drawbar (tested):101.24 hp
75.5 kW
PTO (tested):147.2 hp
109.8 kW
power test details ...
AGCO RT120A Engine
SisuDiesel 6.6L 6-cyl diesel
Fuel tank:100 gal
378.5 L
Engine details ...
Mechanical
Chassis:4x2 2WD
 4x4 MFWD 4WD
Differential lock:front and rear
Steering:power
Brakes:hydraulic wet disc
Cab:Cab standard. Optional Airmaxx pneumatic cab suspension and automatic climate control.
Transmissions:24-speed partial power shift
 continuously variable transmission
Transmission details ...
Photos
No photos of the AGCO RT120A are currently available. To submit yours, email it to Peter@TractorData.com. Photos may only be used with the permission of the original photographer.
Hydraulics
Type:closed center pressure flow compensated (PFC)
Pressure:2900 psi
200.0 bar
Valves:2 to 4
Total flow:29 gpm
109.8 lpm
Tractor hitch
Rear Type:2
Control:electronic position and draft control
Rear lift (at 24"/610mm):9,391 lbs
4259 kg
CVT Rear lift (at 24"/610mm):10,500 lbs
4762 kg
Front Hitch:optional
Front lift:8,800 lbs
3991 kg
Power Take-off (PTO)
Rear PTO:independent
Rear RPM:540/540E/1000/1000E
Front PTO:optional
Front RPM:1000
Dimensions & Tires
2WD Wheelbase:115.3 inches
292 cm
4WD Wheelbase:113.7 inches
288 cm
Weight:13300 to 15100 pounds
Front tire:10.00x16
Rear tire:18.4R42 (2WD)
Full dimensions and tires ...
Electrical
Ground:negative
Charging system:alternator
Charging amps:120
 150*Optional
Batteries:2
Battery CCA:550
Battery volts:12
