John Deere 9630
|
|
| Production | |
| Manufacturer | John Deere |
| Four-wheel Drive (4WD) tractor | |
| Built in Waterloo, Iowa, USA | |
| John Deere 9630 Engine | |
| John Deere 13.5L 6-cyl diesel | |
 Engine details ... |
| John Deere 9630 Transmission | |
| 18-speed full power shift | |
 Transmission details ... |
| John Deere 9630 Power | |
| Engine | 530 hp 395.2 kW |
| Drawbar (tested) | 427.14 hp 318.5 kW |
 Performance test details ... | |
| Mechanical | |
| Four-wheel drive | |
| Differential lock | hydraulic differential lock standard |
| Steering | hydrostatic power |
| Hydraulic wet discs brakes | |
| Trailer brakes | hydraulic optional |
| CommandView Cab standard with air-conditioning. Optional automatic climate control and leather trim. | |
| Photos | |
 | |
 John Deere 9630 photos... | |
| Capacity | |
| Fuel | 350 gal 1324.8 L |
| Hydraulic system | 27 gal 102.2 L |
| 28 gal (3-point) 106.0 L | |
| 20 gal (high-flow) 75.7 L | |
| 31 gal (high-flow and 3-point) 117.3 L | |
| Hydraulics | |
| Type | closed-center pressure and flow compensating |
| Capacity | 27 gal 102.2 L |
| 28 gal (3-point) 106.0 L | |
| 20 gal (high-flow) 75.7 L | |
| 31 gal (high-flow and 3-point) 117.3 L | |
| Pressure | 2900 psi 200.0 bar |
| Valves | 4 to 6 |
| SCV flow | 30 gpm 113.6 lpm |
| Total flow | 48 gpm 181.7 lpm |
| 78 gpm (High-Flow) 295.2 lpm | |
| Tractor hitch | |
| Rear Type | 4N/3 |
| 4N/4 | |
| Rear lift (at 24"/610mm) | 15,300 lbs 6940 kg |
| Drawbar | Catergory 5 standard with secondary chain support. |
| Dimensions & Tires | |
| Wheelbase | 137.8 inches 350 cm |
| Weight | 37747 to 39465 pounds |
 Full dimensions and tires ... | |

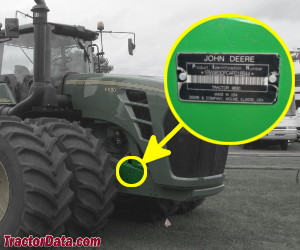

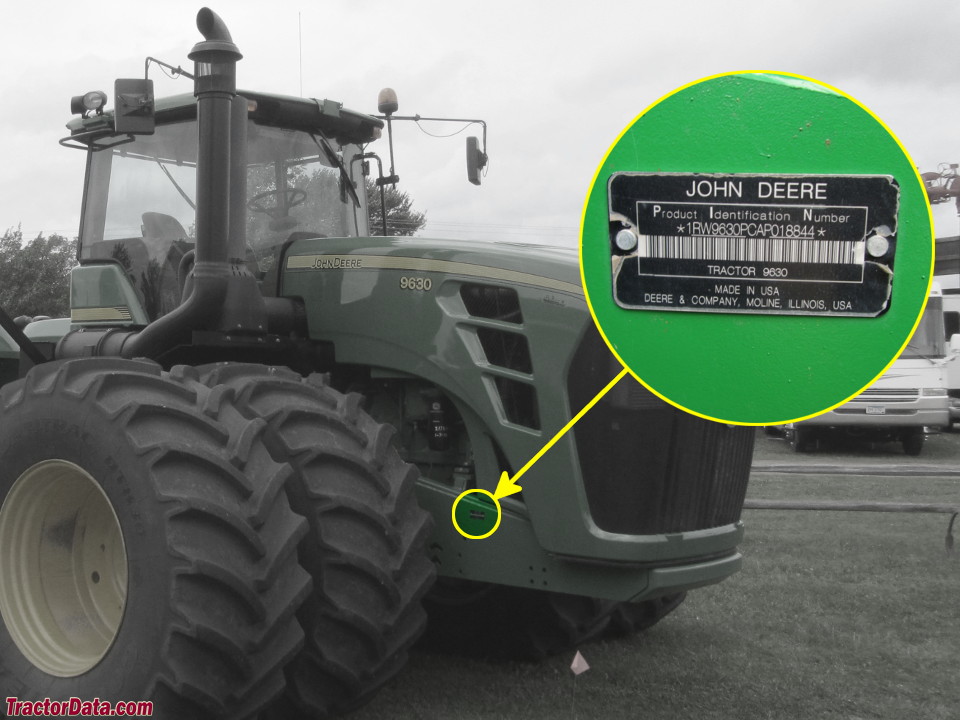

| 9630 Serial Number Location | |
 | |
| Rear-left of tractor hinge frame on early models. Right side of tractor frame, ahead of front axle, on late models. |
| Electrical | |
| Ground | negative |
| Charging system | alternator |
| Charging amps | 200 |
| Batteries | 3 |
| Battery CCA | 925 |
| Battery volts | 12 |
| References | |
 | |
| New 9030 Series Tractors published in 2007, by John Deere | |
| 9230, 9330, 9430, 9530 and 9630 Tractors (OMAR283034) published in 2009 | |
| 9230, 9330, 9430, 9530 and 9630 Tractors (OMRE325893) published in 2011 |
