Tractors > Massey Ferguson > 1200

Massey Ferguson 1200



Massey Ferguson 1200 tractor photo
1972 - 1979
Four-wheel Drive (4WD) tractor
Series map:
1200
78.3kw
Production
ManufacturerMassey Ferguson
Four-wheel Drive (4WD) tractor
Built in Manchester, England
Massey Ferguson 1200 Engine
Perkins 5.8L 6-cyl diesel
Engine details ...
Massey Ferguson 1200 Transmissions
8-speed
12-speed
Transmission details ...
Massey Ferguson 1200 Power
Engine105 hp
78.3 kW
PTO (claimed)91.2 hp
68.0 kW
Mechanical
Four-wheel drive
Steeringhydrostatic power
Hydraulic disc brakes
Cab standard, optional heat and air-conditioning.
Photos

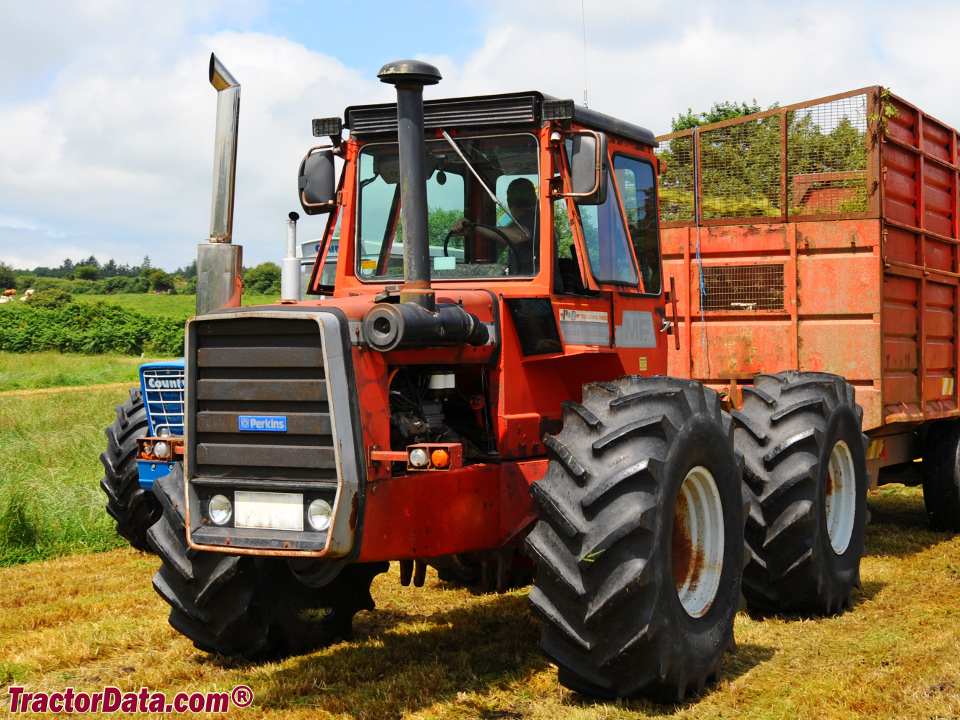

Massey Ferguson 1200 four-wheel drive tractor.
Massey Ferguson 1200 photos...
Capacity
Fuel84 gal
317.9 L
Hydraulic system4.8 gal
18.2 L
Hydraulics
Capacity4.8 gal
18.2 L
Pressure2900 psi
200.0 bar
Total flow11.8 gpm
44.7 lpm
Tractor hitch
Rear TypeII
Rear lift7,500 lbs
3402 kg
Power Take-off (PTO)
Rear PTOindependent
Rear PTO Type1000
Dimensions & Tires
Wheelbase100.8 inches
256 cm
Weight11,370 lbs
5157 kg
Front tire16.9-34
Rear tire16.9-34
Full dimensions and tires ...
