| | 1955 - 1957 |
| 400 Series | | Standard-tread tractor |
|
Series map:
410
55.6hp*
*Estimated engine power for comparison only.
| Transmission |
| Transmission | Powr-range
|
| Gears | 8 forward and 2 reverse
|
| Clutch | 304.8mm dry disc
|
| Oil capacity | 60 qts
56.8 L
|
| Oil type |
|
| Four gears plus reverse, with high and low ranges. All gears and ranges selected by a single lever. A "belt-neutral" position lies between the high and low ranges, intended for stationary work. Gears 7, 8, and high reverse are locked out on tractors equipped with steel wheels. |

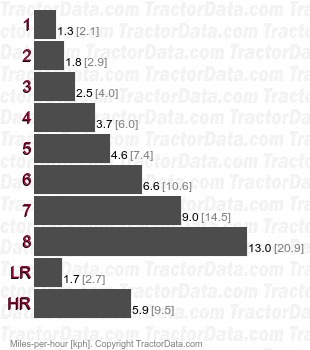

| Speeds |
| With 13-30 rear tires. |
|
