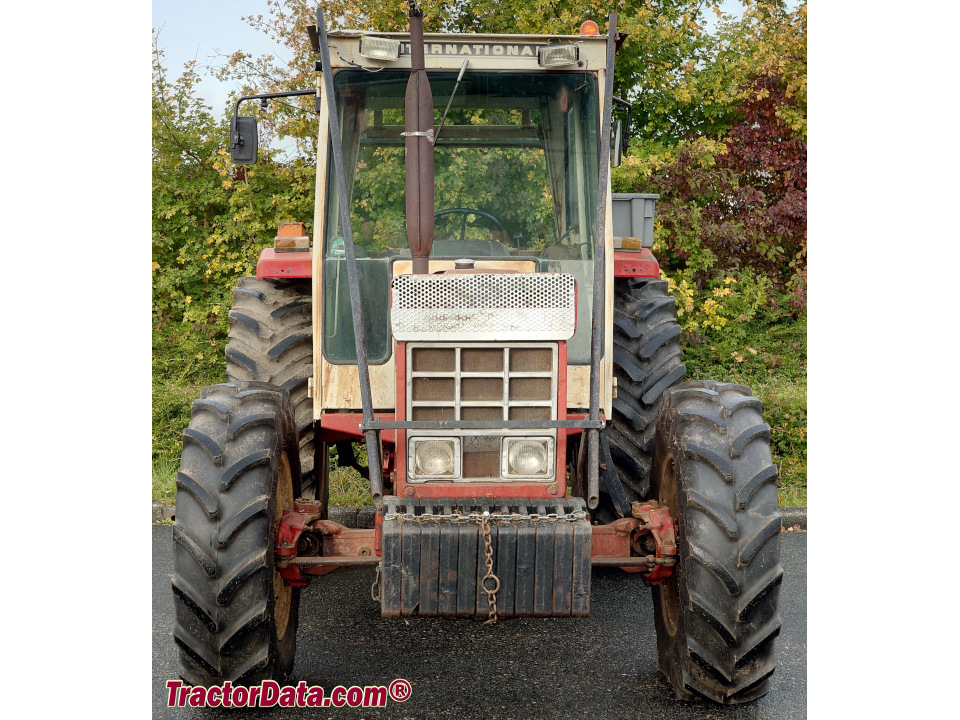

International Harvester 844-S
| | 1975 - 1989 |
| Row-Crop tractor |
|
Series map:
844
844-S
61.1kw
64.9kw
| Production |
| Manufacturer | International Harvester
|
| Row-Crop tractor |
| Factories | Neuss, Germany
|
| | Saint Dizier, France
|
| The sometimes referred to as the 844 Super, the International Harvester 844-S was similar to the English-built 884. |
| International Harvester 844-S Power |
| Engine | 87 hp
64.9 kW
|
| PTO (claimed) | 73 hp*Power at full engine speed.
54.4 kW
|
| Mechanical |
| Two- or four-wheel drive |
| Final drives | planetary
|
| Power steering |
| Differential hydraulic wet disc brakes |
| Open operator station. Cab optional. |
| Capacity |
| Fuel | 22.4 gal
84.8 L
|
| Hydraulic system | 4 gal
15.1 L
|
| Hydraulics |
| Capacity | 4 gal
15.1 L
|
| Valves | 1 or 2
|
| Pump flow | 7.9 gpm
29.9 lpm
|
| Tractor hitch |
| Rear Type | II
|
| Rear lift | 6945 lbs
3150 kg
|
| Power Take-off (PTO) |
| Rear PTO | independent
|
| Rear RPM | 540/1000 (1.375)
|
| Engine RPM | 540@1920
1000@2000
|
| Electrical |
| Ground | negative
|
| Charging system | alternator
|
| Charging amps | 28
|
| Battery volts | 12
|
