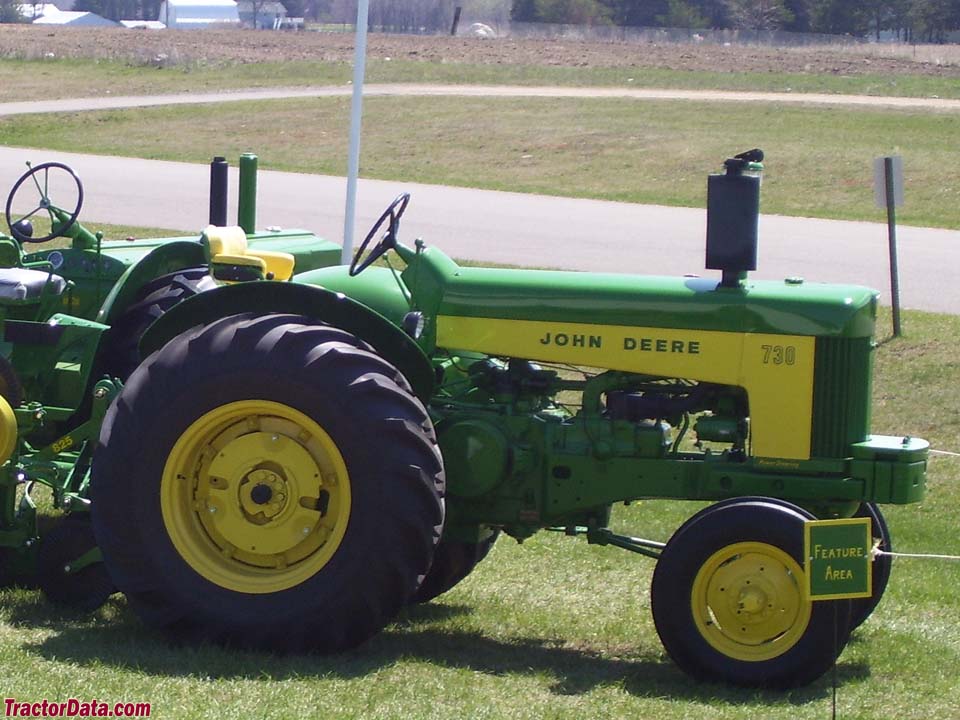

John Deere 730 Standard
| 1958 - 1961 |
Standard-tread tractor |
|
Production |
Manufacturer | John Deere
|
Standard-tread tractor |
Factories | Waterloo, Iowa, USA
|
  | Rosario, Argentina
|
Total built | 5,095 (total)
|
  | 292 (gasoline)
|
  | 28 (all-fuel)
|
  | 220 (LP-gas)
|
  | 4,555 (diesel, 2,213 used pony engine)
|
John Deere 730 Standard Engines |
John Deere 5.9L 2-cyl gasoline |
John Deere 5.9L 2-cyl all-fuel |
John Deere 5.9L 2-cyl LP gas |
John Deere 6.2L 2-cyl diesel |
Fuel tank | 24.5 gal (all-fuel) 92.7 L
|
  | 26.5 gal (gasoline) 100.3 L
|
  | 33 gal (LP gas) 124.9 L
|
  | 20 gal (diesel) 75.7 L
|
Aux. fuel | 1 gal (all-fuel) 3.8 L
|
  | 0.25 gal (diesel pony) 0.9 L
|
Engine details ... |
John Deere 730 Standard Power |
Drawbar (claimed) | 53 hp 39.5 kW
|
PTO (claimed) | 59 hp 44.0 kW
|
Plows | 5
|
Mechanical |
Two-wheel drive |
Steering | manual
|
  | power (optional)
|
Differential mechanical drum brakes |
Open operator station. Optional steel cab. |
Hydraulics |
Type | open center
|
Valves | 1 or 2
|
Tractor hitch |
Rear Type | II (optional)
|
Power Take-off (PTO) |
Rear PTO | independent
|
Rear PTO Type | 540
|
Belt Pulley |
Diameter | 12.8 inches 32 cm
|
Width | 7.4 inches 18 cm
|
RPM | 1,125
|
Speed | 3,790 ft/min 1155.19 meters/min
|
Electrical |
Ground | positive (12V)
|
  | floating (24V)
|
Charging system | generator
|
Batteries | 2
|
  | 4 (diesel)
|
Battery volts | 6
|
References |
 |
The John Deere 30 Series by J.R. Hobbs |
