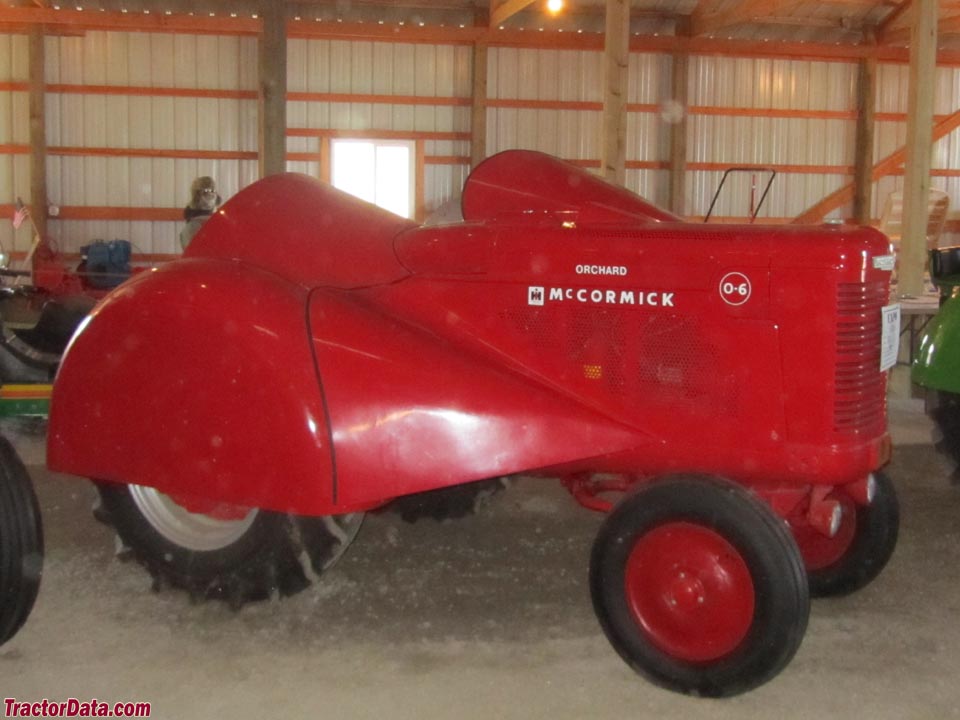

McCormick-Deering O-6
|
|
| Production | |
| Manufacturer | McCormick-Deering |
| Orchard/Vineyard tractor | |
| Built in Rock Island, Illinois, USA | |
| Variants | |
| W-6 | standard |
| O-6 | orchard |
| OS-6 | orchard without full sheet metal |
| ODS-6 | diesel OS-6 |
| I-6 | industrial |
| ID-6 | diesel industrial |
| McCormick-Deering O-6 Engine | |
| International Harvester 4.1L 4-cyl gasoline | |
| Fuel tank | 21 gal 79.5 L |
| Aux. fuel | 0.875 gal 3.3 L |
 Engine details ... | |
| McCormick-Deering O-6 Power | |
| Drawbar (claimed) | 33.5 hp 25.0 kW |
| Belt (claimed) | 38.5 hp 28.7 kW |
| Mechanical | |
| Two-wheel drive | |
| Manual steering | |
| Open operator station. |
| Power Take-off (PTO) | |
| Rear PTO Type | 540 |
| Dimensions & Tires | |
| Wheelbase | 76.25 inches 193 cm |
| Weight | 5310 lbs 2408 kg |
| Front tire | 6.00-16 |
| Rear tire | 13-26 |
 Full dimensions and tires ... | |
| Belt Pulley | |
| Diameter | 11 inches 27 cm |
| Width | 7.5 inches 19 cm |
| RPM | 899 |
| Speed | 2588 ft/min 788.82 meters/min |
| References | |
 | |
| General Line Catalog published in 1949, by International Harvester |
