Farmall 544 Transmission


Farmall 544 tractor photo
1968 - 1973
Row-Crop tractor
504
Series:544
Transmissions overview
5-speed gear
10-speed two-speed power shift
5-speed shuttle
hydrostatic
Transmission
Type:gear
Gears:5 forward and 1 reverse
Oil capacity:80 qts
75.7 L
Speeds
With 13.6-38 rear tires.

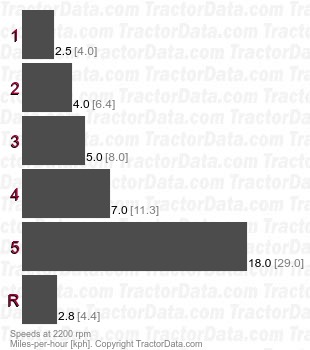

544  gear speeds
Transmission
Transmission:Torque Amplifier
Type:two-speed power shift
Gears:10 forward and 2 reverse
Oil capacity:80 qts
75.7 L
Speeds
With 13.6-38 rear tires.

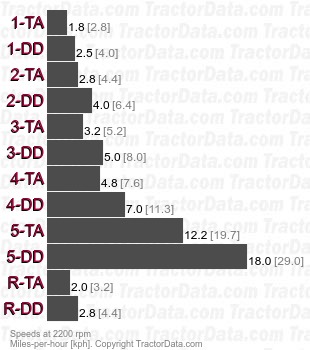

544 Torque Amplifier two-speed power shift speeds
Transmission
Type:shuttle
Gears:5 forward and reverse
Oil capacity:80 qts
75.7 L
Speeds
With 13.6-38 rear tires.

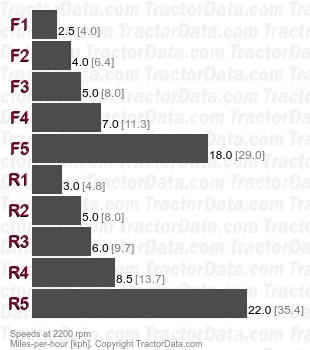

544  shuttle speeds
Transmission
Type:hydrostatic
Gears:infinite (2-range) forward and reverse
Speeds

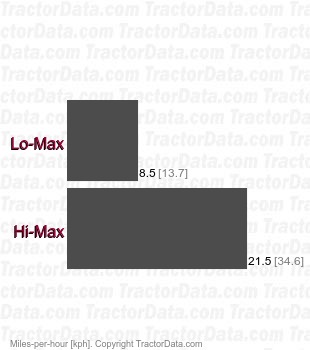

544  hydrostatic speeds
