International Harvester DGD-4

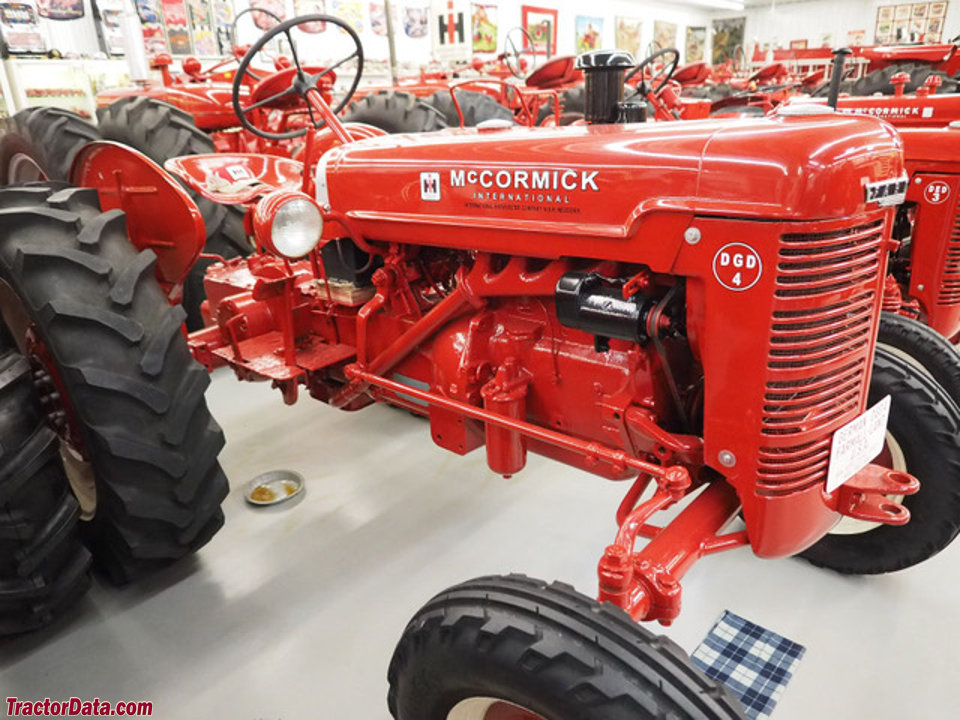

International Harvester DGD-4 tractor photo
1953 - 1956
Row-Crop tractor
Production
ManufacturerInternational Harvester
Row-Crop tractor
Built in Neuss, Germany
Total built8,130
International Harvester DGD-4 Engine
International Harvester 2.2L 4-cyl diesel
Fuel tank8.7 gal
32.9 L
Engine details ...
International Harvester DGD-4 Power
Engine30 hp
22.4 kW
Mechanical
Two-wheel drive
Differential lockmechanical rear
Disc brakes
Open operator station.
Tractor hitch
Rear TypeII/I
Power Take-off (PTO)
Rear RPM540 (1.375)
Dimensions & Tires
Weight2855 lbs
1295 kg
Front tire4.00-19
Rear tire10-28
Full dimensions and tires ...

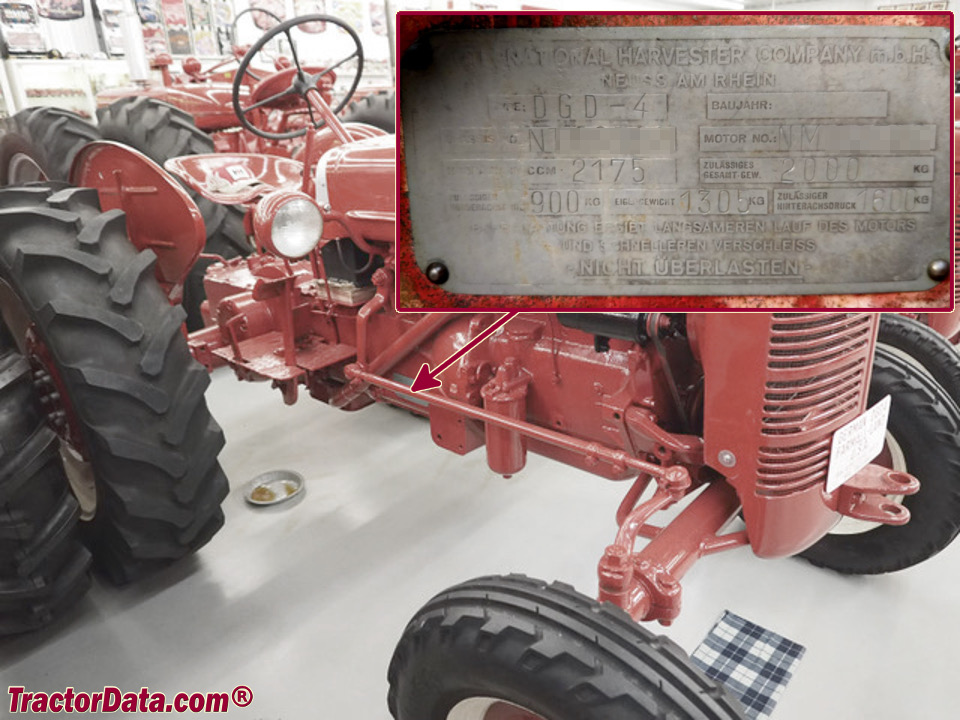

DGD-4 Serial Number Location

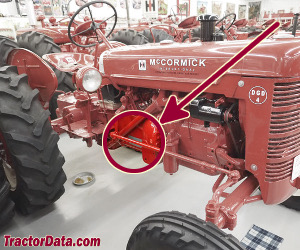

International Harvester DGD-4 serial number location
Serial number tag on the right side of the tractor, behind the clutch housing.
Belt Pulley
Diameter9.5 inches
24 cm
Width6.375 inches
16 cm
RPM1325
References
DGD-4 references literature
DGD 4 published in 1953, by International Harvester
