John Deere 2250

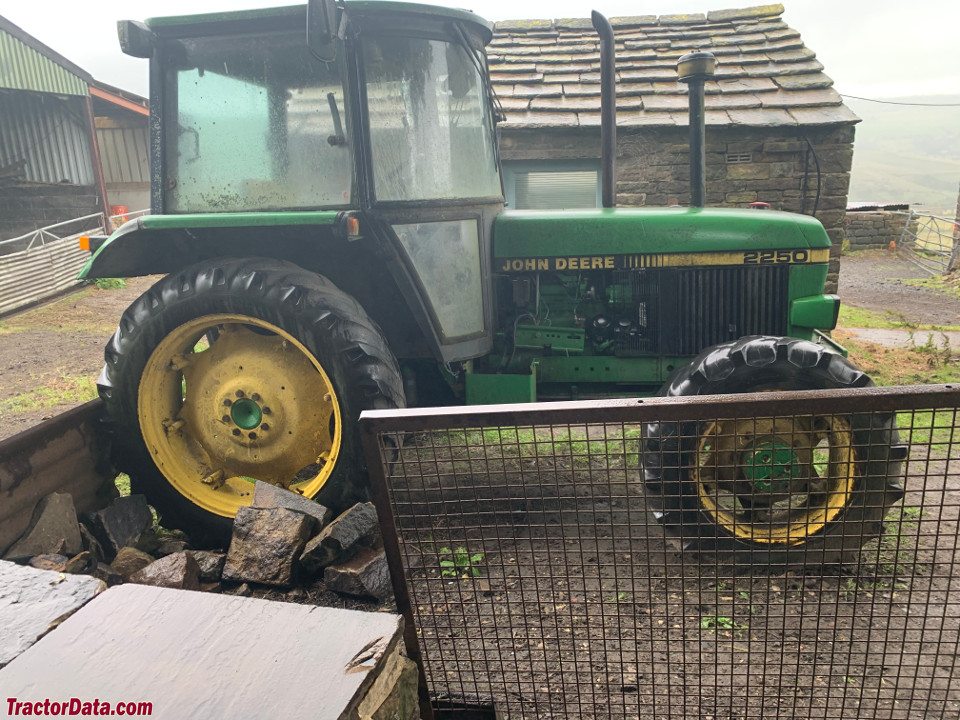

John Deere 2250 tractor photo
1987 - 1994
Utility tractor
Series map:
2250
2450
46.2kw
52.2kw
Production
ManufacturerJohn Deere
Utility tractor
Built in Mannheim, Baden-W├╝rttemberg, Germany
John Deere 2250 Engine
John Deere 3.9L 4-cyl diesel
Fuel tank22.2 gal
84.0 L
 35.9 gal*With optional 52L tank.
135.9 L
Engine details ...
John Deere 2250 Transmissions
8-speed
16-speed two-speed power shift
Transmission details ...
John Deere 2250 Power
Engine62 hp
46.2 kW
Mechanical
Two- or four-wheel drive
Final drivesplanetary
Differential lockmechanical rear
Steeringpower assist
 hydrostatic *With four-wheel drive and SG2 cab option.
Hydraulic wet disc brakes
ROPS. MC1 or Sound-Gard cab optional. CC2 cab available in 1991.
Hydraulics
Typeclosed-center constant pressure
Pressure2756 psi
190.0 bar
Pump flow11.6 gpm
43.9 lpm
Tractor hitch
Rear TypeII
Controlposition and draft control
Rear lift (at ends)6768 lbs
3069 kg
Power Take-off (PTO)
Rear PTOindependent
Clutchhydraulic wet disc
Rear RPM540
 1000
Engine RPM540@2075
Dimensions & Tires
2WD Wheelbase89.2 inches
226 cm
4WD Wheelbase90 inches
228 cm
Weight7077 to 8157 pounds
Front tire7.50-16
2WD MC1 Rear tire13.6-36
Full dimensions and tires ...
Electrical
Groundnegative
Charging amps55
Batteries2
Battery volts12
Battery AH55
References
2250 references literature
Operator's Manual 2250, 2450 and 2650 Tractors published in 1992, by John Deere
Operator's Manual 2250 and 2450 Tractors published in 1991, by John Deere
2250 Traktor published in 1986, by John Deere
Traktor 2250 published in 1988, by John Deere
