Schluter Compact 850

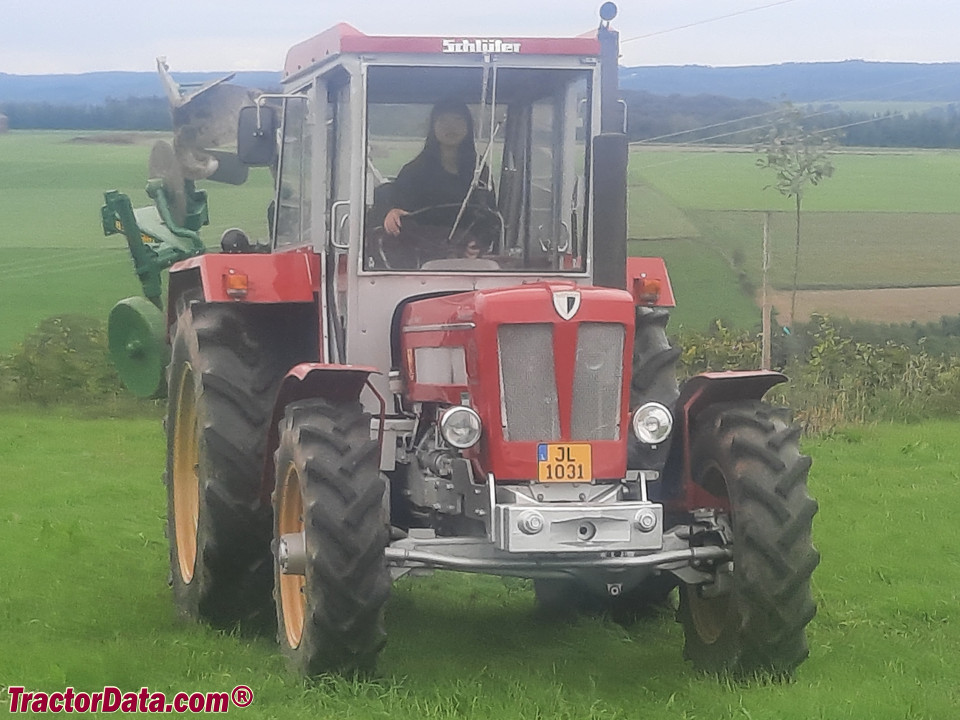

Schluter Compact 850 tractor photo
1971 - 1983
Model year
Series:Compact 750Compact 850Compact 1050T
Production
Manufacturer:Schluter
Schluter Compact 850 Power
Engine:85 hp
63.4 kW
Schluter Compact 850 Engine
Schluter 4.8L 4-cyl diesel
Fuel tank:33.0 gal
124.9 L
Engine details ...
Mechanical
Chassis:4x2 2WD
 4x4 MFWD 4WD
Steering:mechanical/power assist/ hydrostatic power
Brakes:drum
Transmission:12-speed
Transmission details ...
Photos
No photos of the Schluter Compact 850 are currently available. To submit yours, email it to Peter@TractorData.com. Photos may only be used with the permission of the original photographer.
Tractor hitch
Rear lift:7,056 lbs
3200 kg
 7,938 lbs
3600 kg (optional)
Power Take-off (PTO)
Rear RPM:540/1000
Dimensions & Tires
Wheelbase:92.5 inches
234 cm
Weight:7574 to 8522 pounds
Front tire:7.50-20
Rear tire:13.6-36
Full dimensions and tires ...
