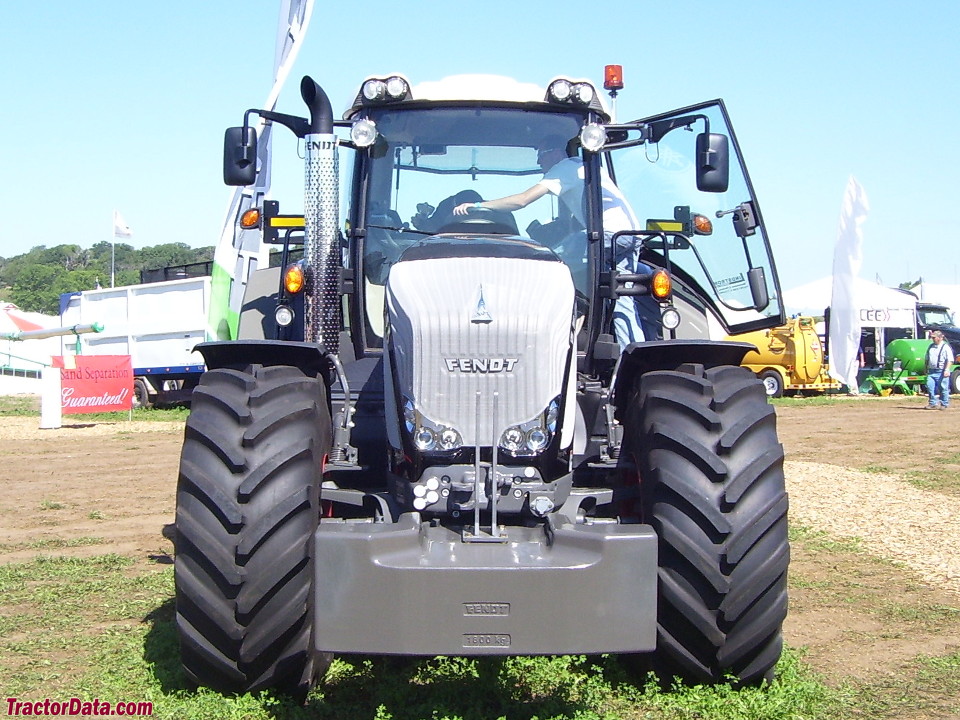

Fendt 930 Vario
| | 2002 - 2025 |
|
| 900 Vario Series | | Row-Crop tractor |
|
| Production |
| Manufacturer | Fendt (a part of AGCO)
|
| Row-Crop tractor |
| Built in Marktoberdorf, Germany |
| Fendt 930 Vario Power |
| Engine (gross) | 295 hp
220.0 kW
|
| Engine (net) | 270 hp
201.3 kW
|
| Engine (max) | 305 hp
227.4 kW
|
| PTO (claimed) | 250 hp
186.4 kW
|
| Mechanical |
| Four-wheel drive |
| Power steering |
| Wet disc brakes |
| Cab standard with heat and air-conditioning. |
| Capacity |
| Fuel | 174.4 gal
660.1 L
|
| Hydraulic system | 23 gal
87.1 L
|
| Hydraulics |
| Type | load sensing
|
| Capacity | 23 gal
87.1 L
|
| Pressure | 2900 psi
200.0 bar
|
| Valves | 4
|
| Total flow | 42.3 gpm
160.1 lpm
|
| | 57.1 gpm (optional)
216.1 lpm
|
| Tractor hitch |
| Rear Type | IV
|
| Rear lift (at ends) | 19,800 lbs
8981 kg
|
| Front lift (at ends) | 9,000 lbs
4082 kg
|
| Power Take-off (PTO) |
| Rear PTO | independent
|
| Rear PTO Type | 540E/1000
|
| | 1000
|
| Front PTO | optional
|
| Front PTO Type | 1000
|
| Electrical |
| Charging system | alternator
|
| Charging amps | 300 *Dual 150A alternators
|
| Battery volts | 12
|
| Page information |
 |
| Copyright 2024 TractorData.com® |
| TractorData is a family-owned small business located in Minnesota that has been providing reference information on tractors since 1999. |
| Peter Easterlund - owner/author |
| Email: Peter@TractorData.com |
| Updated on June 25, 2021 |
