John Deere 1140

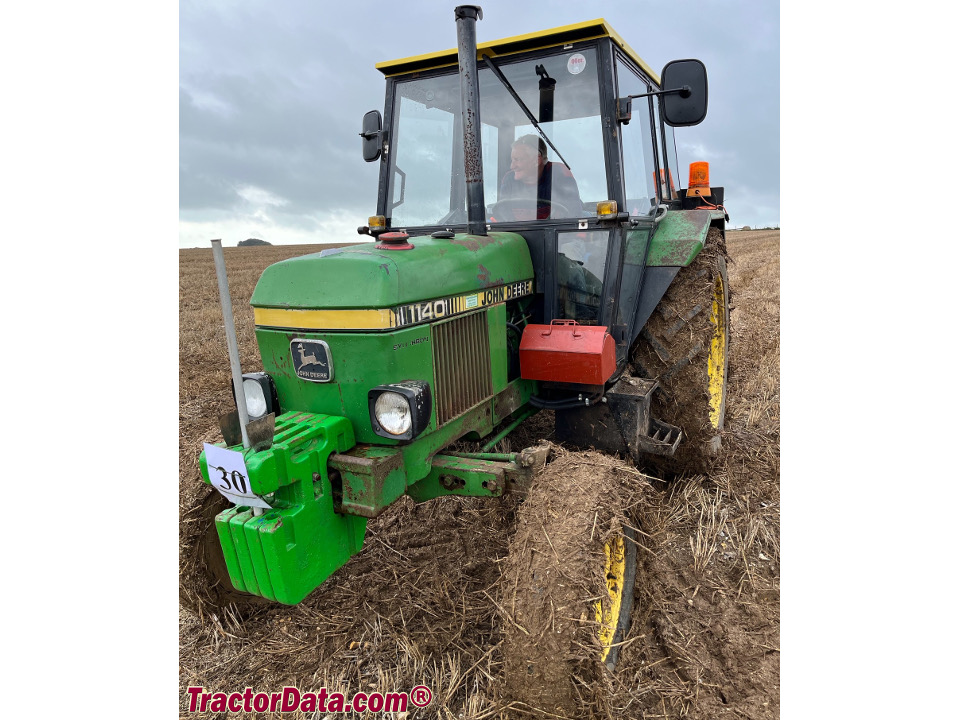

John Deere 1140 tractor photo
1980 - 1987
Utility tractor
Series map:
1040
1140
40.0kw
41.0kw
Production
ManufacturerJohn Deere
Utility tractor
Built in Mannheim, Baden-W├╝rttemberg, Germany
John Deere 1140 Engine
John Deere 2.9L 3-cyl diesel
Engine details ...
John Deere 1140 Transmissions
8-speed collar shift
16-speed two-speed power shift
Transmission details ...
John Deere 1140 Power
Engine55 hp
41.0 kW
PTO (claimed)49.6 hp
37.0 kW
Mechanical
Two- or four-wheel drive
Steeringpower
Hydraulic wet disc brakes
Four-post ROPS. Cab optional.
Capacity
Fuel20.6 gal
78.0 L
Hydraulic system14.5 gal
54.9 L
Hydraulics
Typeclosed center constant pressure
Capacity14.5 gal
54.9 L
Pressure2466 psi
170.0 bar
Pump flow12.4 gpm
46.9 lpm
Tractor hitch
Rear TypeII/I
Controllower-link draft control
Rear lift5291 lbs
2399 kg
Power Take-off (PTO)
Rear PTOindependent
Clutchhydraulic disc
Rear PTO Type540
Engine RPM540@2400
Dimensions & Tires
Wheelbase80.7 inches
204 cm
Weight5,300 lbs
2404 kg
Front tire7.50-16
Rear tire13.6-36 (2WD)
Full dimensions and tires ...
Electrical
Groundnegative
Charging systemalternator
Charging amps55
Batteries2
Battery volts12
Battery AH55
References
1140 references literature
John Deere 1140 published in 1987
Move up to John Deere... published in 1981
