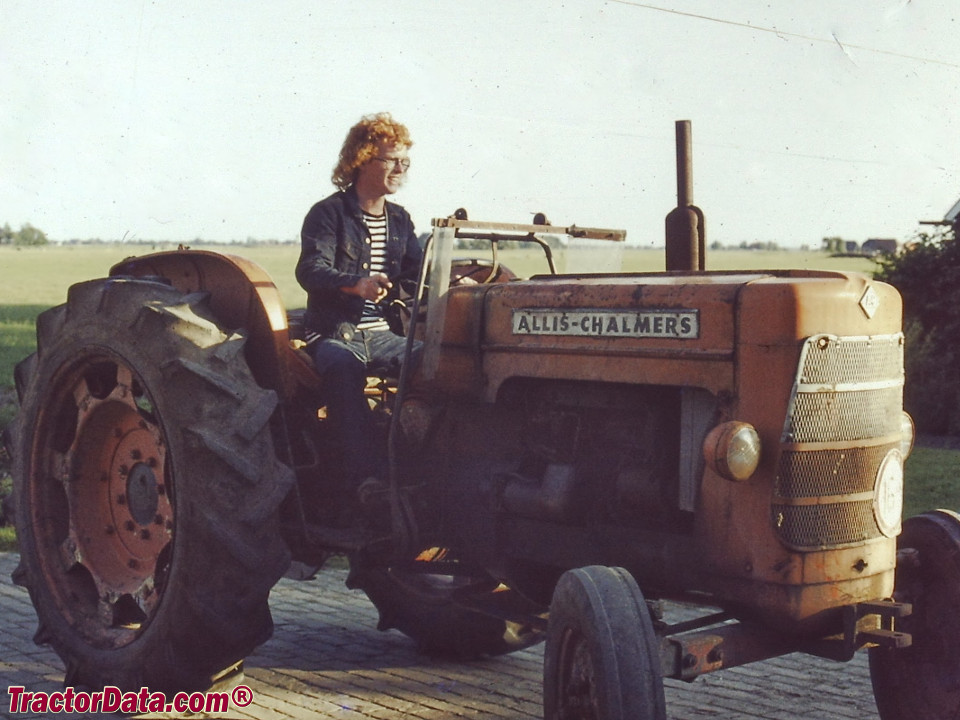

Allis Chalmers FD5
| Production |
| Manufacturer | Allis Chalmers
|
| Built in Vendeuvre, France |
| Allis Chalmers FD5 Power |
| Engine | 50 hp
37.3 kW
|
| Mechanical |
| Two-wheel drive |
| Open operator station. |
| Capacity |
| Fuel | 18.5 gal
70.0 L
|
| Hydraulic system | 4.75 gal
18.0 L
|
| Hydraulics |
| Capacity | 4.75 gal
18.0 L
|
| Tractor hitch |
| Rear Type | II
|
| Power Take-off (PTO) |
| Rear PTO Type | 540 (1.375)
|
| Engine RPM | 540@1080
|
| Belt Pulley |
| Diameter | 11 inches
27 cm
|
| Width | 7.5 inches
19 cm
|
| RPM | 1280
|
| Electrical |
| Ground | negative
|
| Batteries | 2
|
| Battery volts | 6
|
| References |
 |
| FD5 published in 1963, by Allis Chalmers |
| Operator's Manual FD5 (138-IX-62) published in 1962 |
