Cub Cadet 7254
| | 2003 |
| 7000 Series | | Compact Utility tractor |
|
Series map:
7252
7254
7264
25.0hp
25.0hp
26.0hp
| Production |
| Manufacturer | Cub Cadet
|
| Compact Utility tractor |
| Original price was $11,700 in 2003 |
| Cub Cadet 7254 Power |
| Engine | 25 hp
18.6 kW
|
| PTO (claimed) | 20 hp
14.9 kW
|
| Mechanical |
| Four-wheel drive |
| Differential lock | mechanical rear
|
| Steering | hydrostatic power
|
| Dry shoe brakes |
| Two-post foldable ROPS. |
| Photos |
| No photos of the Cub Cadet 7254 are currently available. To submit yours, email it to Peter@TractorData.com. Photos may only be used with the permission of the original photographer. |
| Capacity |
| Fuel | 6 gal
22.7 L
|
| Hydraulic system | 6 gal
22.7 L
|
| Front axle | 1 qts
0.9 L
|
| Front hubs | 0.75 qts (each)
0.7 L
|
| Hydraulics |
| Type | open center gear pump
|
| Capacity | 6 gal
22.7 L
|
| Pressure | 1500 psi
103.4 bar
|
| Pump flow | 5 gpm
18.9 lpm
|
| Total flow | 8 gpm
30.3 lpm
|
| Steering flow | 3 gpm
11.4 lpm
|
| Tractor hitch |
| Rear Type | I
|
| Control | position control
|
| Rear lift (at ends) | 1150 lbs
521 kg
|
| Rear lift (at 24"/610mm) | 950 lbs
430 kg
|
| Power Take-off (PTO) |
| Rear PTO | independent
|
| Clutch | electric
|
| Rear PTO Type | 540 (1.375)
|
| Engine RPM | 540@3500
|
| Mid PTO | independent
|
| Clutch | electric
|
| Mid PTO Type | 2000 (1.000)
|
| Electrical |
| Ground | negative
|
| Charging system | flywheel alternator
|
| Charging amps | 30
|
| Battery CCA | 500
|
| Battery volts | 12
|

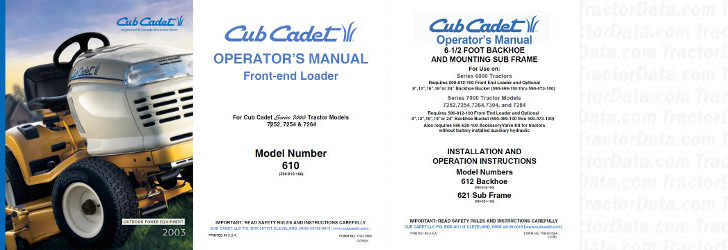

| References |
 |
| Outdoor Power Equipment 2003 published by Cub Cadet |
| Operator's Manual Series Front-end Loader model 610 (770-10585) published in 2002 |
| Operator's Manual 612 Backhoe (769-00150A) published in 2005 |
| Page information |
 |
| Copyright 2024 TractorData.com® |
| TractorData is a family-owned small business located in Minnesota that has been providing reference information on tractors since 1999. |
| Peter Easterlund - owner/author |
| Email: Peter@TractorData.com |
| Updated on April 6, 2013 |
