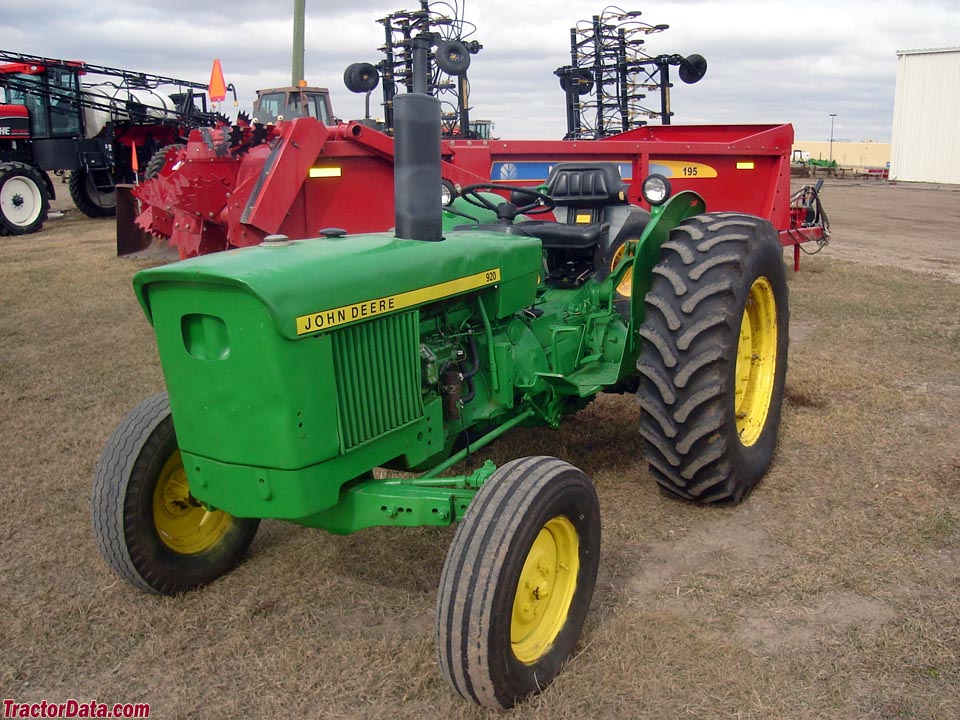

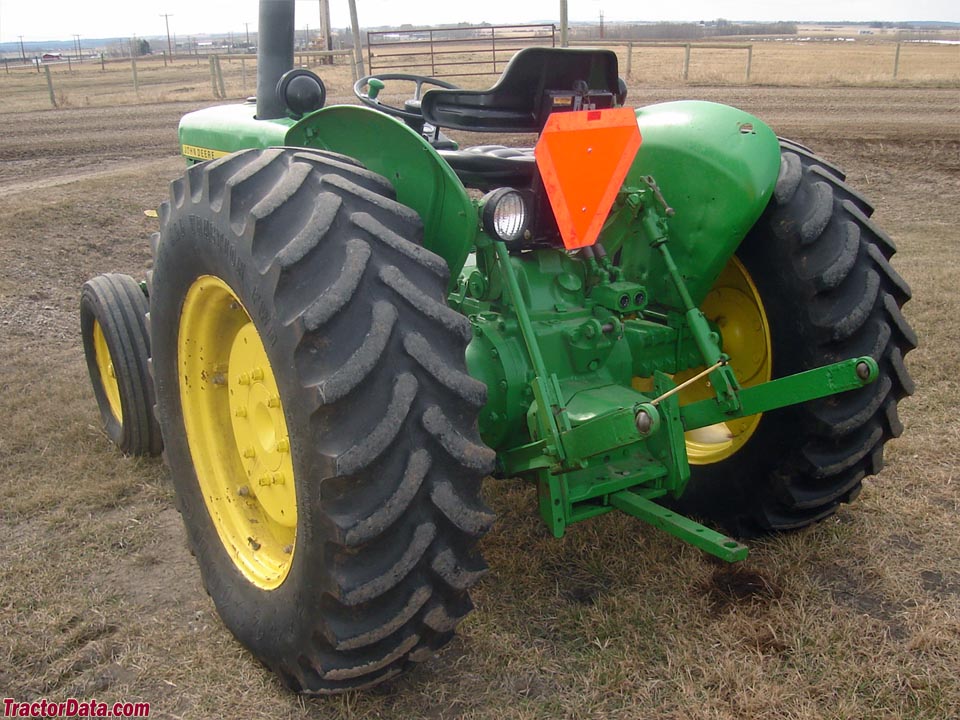

John Deere 920
| | 1967 - 1975 |
| Utility tractor |
|
Series map:
820
920
32.0hp
37.0hp
| Production |
| Manufacturer | John Deere
|
| Utility tractor |
| Built in Mannheim, Baden-Württemberg, Germany |
| John Deere 920 Power |
| Engine (gross) | 37 hp
27.6 kW
|
| Engine (net) | 37 hp
27.6 kW
|
| PTO (claimed) | 33 hp
24.6 kW
|
| Mechanical |
| Two-wheel drive |
| Final drives | planetary
|
| Differential lock | mechanical rear
|
| Open operator station. |
| Capacity |
| Fuel | 16.5 gal
62.5 L
|
| Hydraulic system | 10 gal
37.9 L
|
| Hydraulics |
| Capacity | 10 gal
37.9 L
|
| Pressure | 2000 psi
137.9 bar
|
| Power Take-off (PTO) |
| Rear PTO | live *Dual-stage clutch.
|
| Rear PTO Type | 540 (1.375)
|
| Engine RPM | 540@2100
|
| Mid PTO | live *Optonal
|
| Mid PTO Type | 1000
|
| Electrical |
| Ground | negative
|
| Battery volts | 12
|
| References |
 |
| Operator's Manual 145 Loader (OMW21474) |
| Operator's Manual 8920 Tractor (OML25163) |
