New Holland 9882 Engine


New Holland 9882 tractor photo
1996 - 2000
9082 Series
Four-wheel Drive (4WD) tractor
Versatile built
Series map:
9682
9882
360.0hp
425.0hp
Engine Detail
Cummins N14
turbocharged aftercooled diesel
6-cylinder
liquid-cooled vertical
Displacement855 ci
14.0 L
Bore/Stroke5.50x6.00 inches
140 x 152 mm
Power425 hp
316.9 kW
Air cleanerdual paper elements
Compression16.5:1
Rated RPM2100
Idle RPM900-2400
Torque1400 lb-ft
1898.4 Nm
Torque RPM1400
Firing order1-5-3-6-2-4
Starter volts12
Coolant capacity63.6 qts
60.2 L
Engine Oil

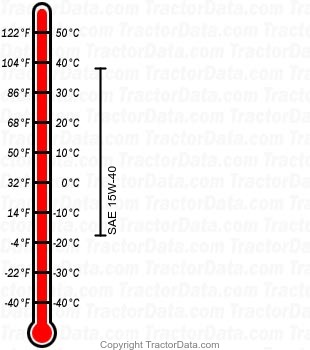

9882 diesel engine oil chart
Oil capacity40.8 qts
38.6 L
Oil change250 h
