Tractors > New Holland > 9682

New Holland 9682 Engine



New Holland 9682 tractor photo
1996 - 2000
9082 Series
Four-wheel Drive (4WD) tractor
Versatile built
Series map:
9482
9682
9882
310.0hp
360.0hp
425.0hp
Engine Detail
Cummins N14
turbocharged aftercooled diesel
6-cylinder
liquid-cooled vertical
Displacement855 ci
14.0 L
Bore/Stroke5.50x6.00 inches
140 x 152 mm
Power360 hp
268.5 kW
Air cleanerdual paper elements
Compression18.5:1
Rated RPM2100
Idle RPM900-2400
Torque1215 lb-ft
1647.5 Nm
Torque RPM1400
Firing order1-5-3-6-2-4
Starter volts12
Coolant capacity62.4 qts
59.1 L
Engine Oil

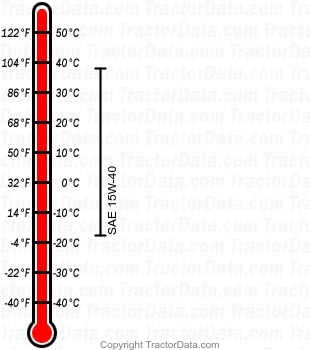

9682 diesel engine oil chart
Oil capacity40.8 qts
38.6 L
Oil change250 h
