Challenger MT525B Tests
|
|
| Tractor Tests | |
| OECD 5153: diesel AutoPower IV 4WD | |
| OECD 2193: diesel CVT 4WD |
| OCED Tractor Test 5153 | |||
| |||
| OCED Tractor Test 5153 | |
| Diesel AutoPower IV 4WD February 2004 - March 2004, Link: OCED Tractor Test 5153 file | |
| PTO performance | |
| Max power | 110.9 hp 82.7 kW |

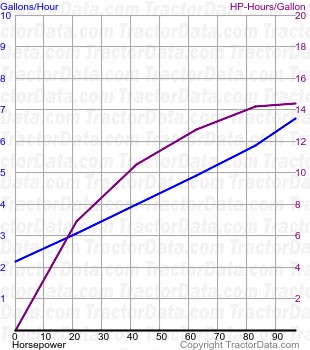

| Fuel use | 6.4 gal/hour 24.2 l/hour |
| Power at rated engine speed | 96.7 hp 72.1 kW |
| Fuel use | 6.7 gal/hour 25.4 l/hour |
| Power at rated PTO speed | 109.2 hp 81.4 kW |
| Fuel use | 6.7 gal/hour 25.4 l/hour |
| Drawbar performance | |
| Max power | 60.2 hp 44.9 kW |
| Fuel use | 5.6 gal/hour 21.2 l/hour |
| Gear 1LB used for power test. | |
| Max pull | 10,160 lbs 4608 kg |
| Gear 1TD used for pull test. | |
| OCED Tractor Test 2193 | |||
| |||
| OCED Tractor Test 2193 | |
| Diesel CVT 4WD January 2004 - March 2004, Link: OCED Tractor Test 2193 file | |
| PTO performance | |
| Max power | 106.5 hp 79.4 kW |

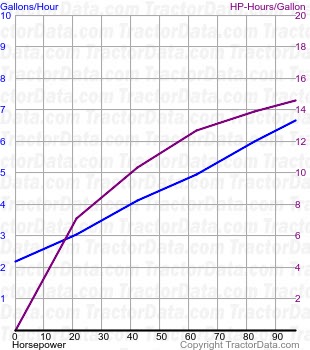

| Fuel use | 6.3 gal/hour 23.8 l/hour |
| Power at rated engine speed | 96.7 hp 72.1 kW |
| Fuel use | 6.6 gal/hour 25.0 l/hour |
| Power at rated PTO speed | 102.5 hp 76.4 kW |
| Fuel use | 6.5 gal/hour 24.6 l/hour |
| Drawbar performance | |
| Max power | 81.8 hp 61.0 kW |
| Pull at 6.2 KPH | |
| Max pull | 14,310 lbs 6491 kg |
| Pull at 3.3 KPH | |
