Mitsubishi D2350

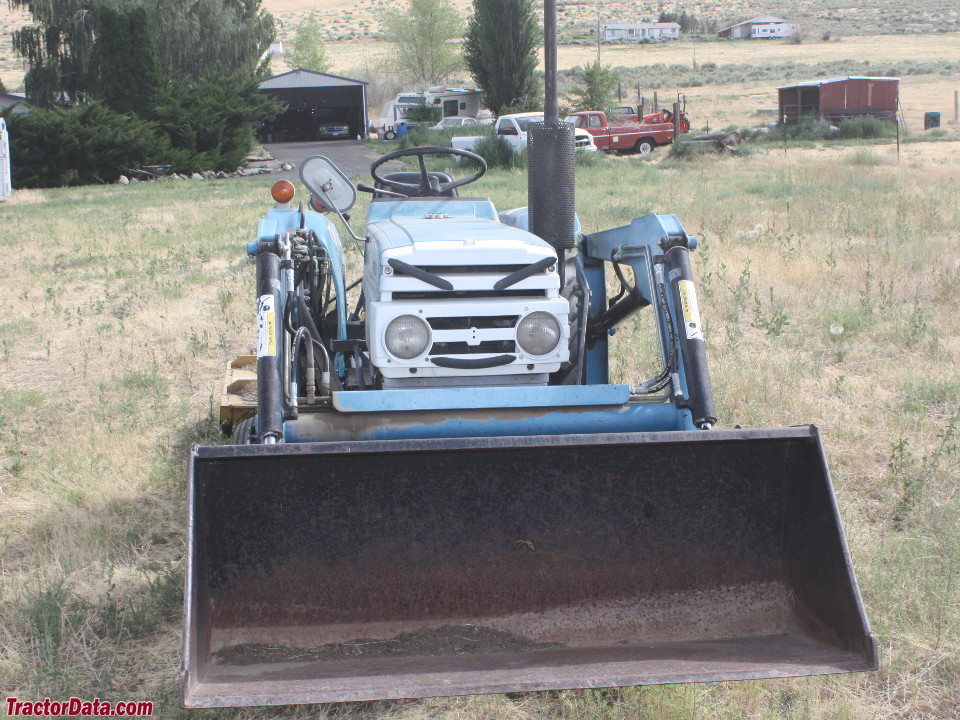

Mitsubishi D2350 tractor photo
1977 - ????
Compact Utility tractor
Production
Manufacturer:Mitsubishi
Type:Compact Utility tractor
Mitsubishi D2350 Power
Engine:23 hp
17.2 kW
Mitsubishi D2350 Engine
Mitsubishi 4-cyl diesel
Fuel tank:5 gal
18.9 L
Engine details ...
Mechanical
Chassis:4x4 MFWD 4WD
Cab:Open operator station.
Transmission:18-speed gear
Transmission details ...
Power Take-off (PTO)
Rear RPM:540 (1.375)
Dimensions & Tires
Front tire:5.00-15
Rear tire:9.5-24
Full dimensions and tires ...
D2350 Serial Numbers

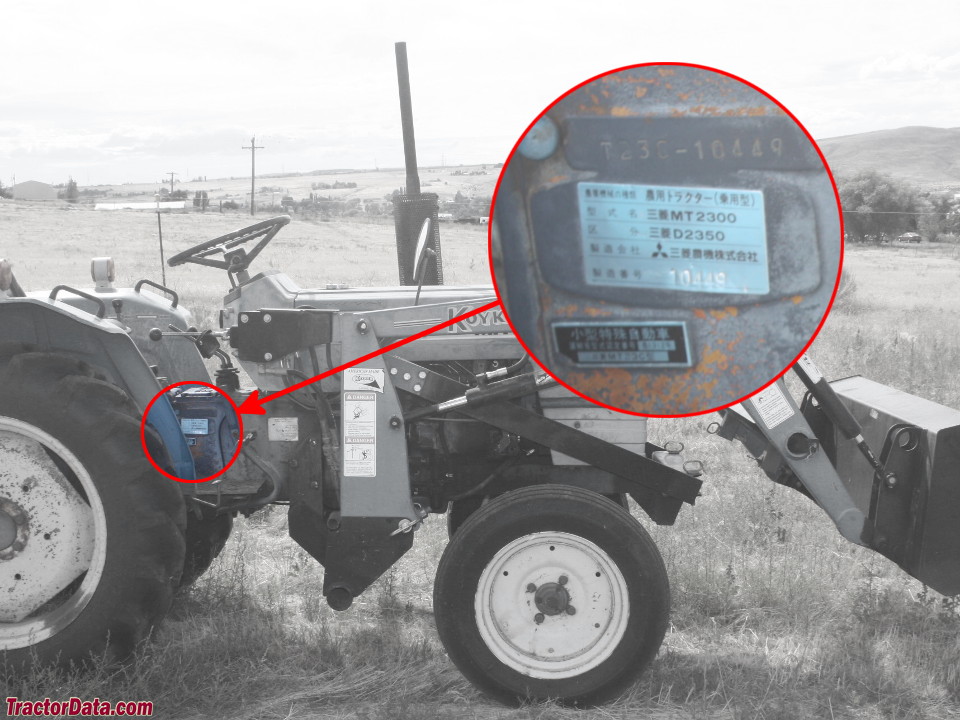

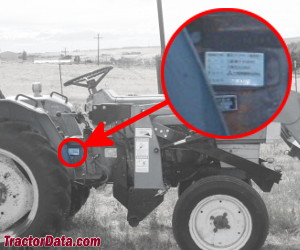

Location:Serial number plate on the right side of the D2350 transmission housing to the rear of the brake pedals.
photo of D2350 serial number

Electrical
Ground:negative
Battery volts:12
