New Holland 3010

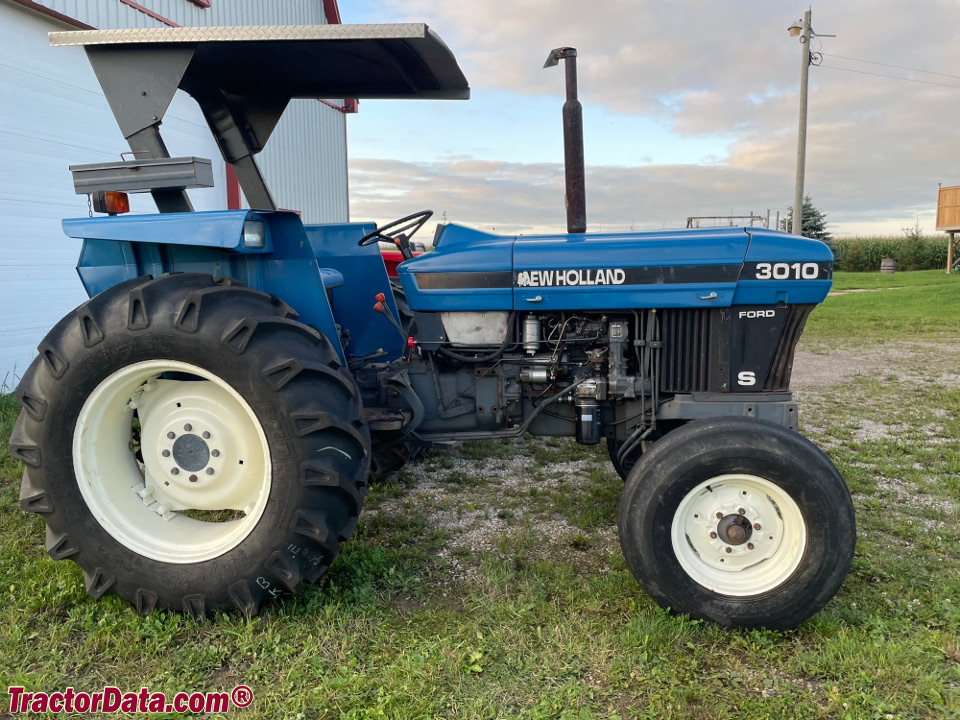

New Holland 3010 tractor photo
1996 - 2003
Utility tractor
Production
Manufacturer:New Holland
Type:Utility tractor
Factory:Queretaro, Mexico
New Holland 3010 Power
Engine:55 hp
41.0 kW
PTO (claimed):42 hp
31.3 kW
New Holland 3010 Engine
New Holland 2.7L 3-cyl diesel
Engine details ...
Mechanical
Chassis:4x2 2WD
 4x4 MFWD 4WD
Steering:power
Brakes:wet disc
Cab:Two-post ROPS.
Transmission:8-speed constant mesh
Transmission details ...
Capacity
Fuel:15.8 gal
59.8 L
2WD Hydraulic system:8.5 gal
32.2 L
4WD Hydraulic system:8.2 gal
31.0 L
Steering:1.8 qts
1.7 L
Front axle:5.8 qts
5.5 L
Front hubs:1.3 qts
1.2 L (each)
Hydraulics
Type:gear pump
2WD Capacity:8.5 gal
32.2 L
4WD Capacity:8.2 gal
31.0 L
Pressure:2750 psi
189.6 bar
Pump flow:8.6 gpm
32.6 lpm
Steering flow:4.0 gpm
15.1 lpm
Steering cap.:1.8 qts
1.7 L
Steering press.:1450 psi
100.0 bar
Power Take-off (PTO)
Rear PTO:independent
Rear RPM:540
Dimensions & Tires
Wheelbase:79.1 inches
200 cm
Weight:4956 to 5705 pounds
Front tire:7.50-16
2WD Rear tire:14.9-28
Full dimensions and tires ...
Electrical
Ground:negative
Charging system:alternator
Charging amps:55
Charging volts:12
Battery volts:12
Battery AH:107
