CaseIH CS 86

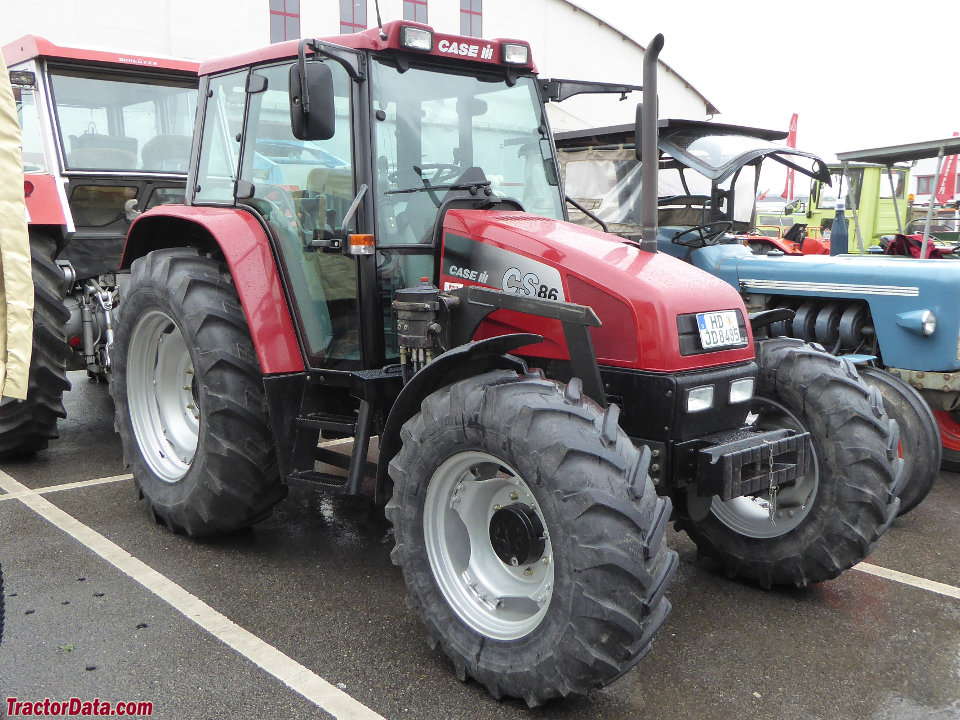

CaseIH CS 86 tractor photo
1995 - 2003
CS Series
Utility tractor
Series:CS 78CS 86CS 94
Production
Manufacturer:CaseIH
Type:Utility tractor
CaseIH CS 86 Power
Engine:86 hp
64.1 kW
PTO (claimed):78.9 hp
58.8 kW
CaseIH CS 86 Engines
MWM 4.2L 4-cyl diesel
Sisu 4.4L 4-cyl diesel
Fuel tank:26.4 gal
99.9 L
 39.6 gal
149.9 L *Optional
Engine details ...
Mechanical
Chassis:4x4 MFWD 4WD
Steering:power
Brakes:disc
Cab:Cab standard.
Transmissions:16-speed synchronized
 16-speed two-speed power shift
 32-speed creeper
Transmission details ...
Hydraulics
Total flow:13.2 gpm
50.0 lpm
 22.2 gpm
84.0 lpm *Optional
Tractor hitch
Rear Type:II
Rear lift:10804.5 lbs
4900 kg
Power Take-off (PTO)
Rear PTO:independent
Rear RPM:540/1000 (1.375)
Engine RPM:430@2130
540@2046
540E@1506
1000@2130
Front PTO:independent
Front RPM:1000
Dimensions & Tires
Wheelbase:97.6 inches
247 cm
Weight:8708 lbs
3949 kg
Front tire:14.9R24
Rear tire:18.4R34
Full dimensions and tires ...
Electrical
Ground:negative
Charging system:alternator
Battery volts:12
