Landini Rex 70

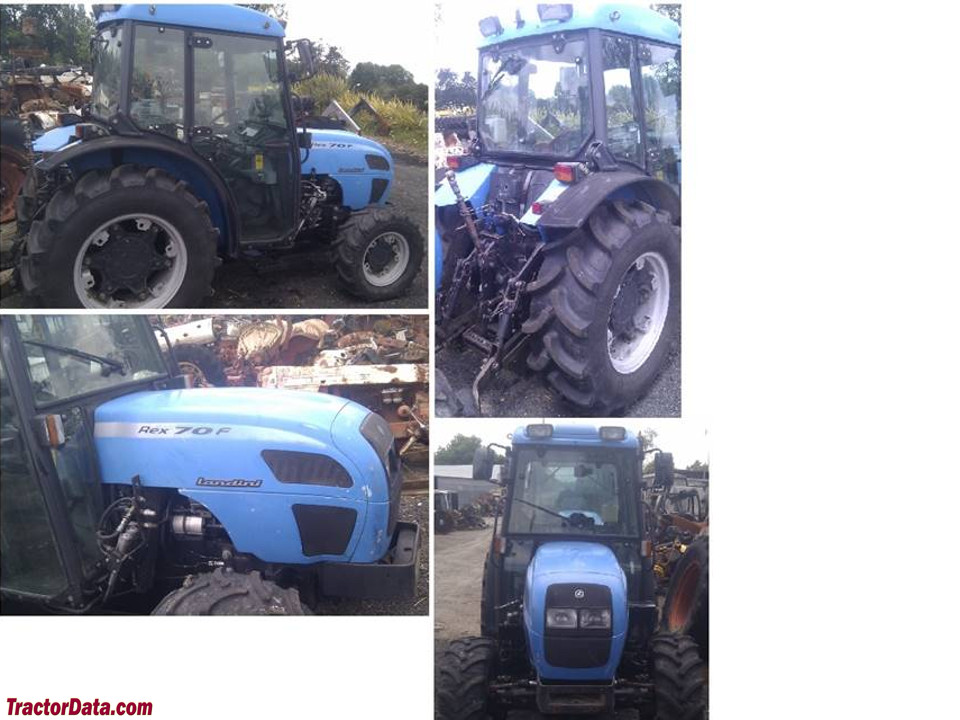

Landini Rex 70 tractor photo
2001 - 2020
Model year
Rex Series
Orchard/Vineyard tractor
Series:Rex 65Rex 70Rex 80
Production
Manufacturer:Landini (a part of Argo)
Type:Orchard/Vineyard tractor
Landini Rex 70 Power
Engine:68 hp
50.7 kW
PTO (claimed):61 hp
45.5 kW
Landini Rex 70 Engine
Perkins 4.0L 4-cyl diesel
F Fuel tank:14 gal
53.0 L
GT Fuel tank:16.4 gal
62.1 L
Engine details ...
Mechanical
Chassis:4x2 2WD
 4x4 MFWD 4WD
Steering:power
Brakes:wet disc
Cab:Two-post foldable mid-mount ROPS. Cab optional.
Transmissions:12-speed shuttle
 24-speed creeper
 40-speed
Transmission details ...
Hydraulics
F Valves:2
GT Valves:3
Pump flow:14.2 gpm
53.7 lpm
Total flow:19.2 gpm
72.7 lpm
 22.4 gpm
84.8 lpm *With Deltashift transmission.
Steering flow:5 gpm
18.9 lpm
 8.1 gpm
30.7 lpm *With Deltashift transmission.
Tractor hitch
Rear Type:II
Rear lift:5732 lbs
2600 kg
Power Take-off (PTO)
Rear PTO:independent
Clutch:electro-hydraulic
Rear RPM:540/750
 540/1000
Dimensions & Tires
F Wheelbase:79.3 inches
201 cm
GT Wheelbase:84 inches
213 cm
Weight:5952 to 6173 pounds
Full dimensions and tires ...
Electrical
Ground:negative
Battery volts:12
