Fiat M115 Engine


No photo available
1996 - 1999
Series map:
M100
M115
M135
100.0hp
115.0hp
135.0hp
Engine Detail
New Holland Genesis
diesel
6-cylinder
liquid-cooled
Displacement456 ci
7.5 L
Bore/Stroke4.5x5.0 inches
114 x 127 mm
Power115 hp
85.8 kW
Compression17.5:1
Rated RPM2200
Idle RPM700-2420
Operating RPM1500-2200
Torque RPM1600
Firing order1-5-3-6-2-4
Starter volts12
Starter power4.9 hp
3.7 kW
Coolant capacity24.8 qts (ROPS)
23.5 L
 26.9 qts (cab)
25.5 L
Intake valve clearance0.016 inches (cold)
0.406 mm
Exhaust valve clearance0.018 inches (cold)
0.457 mm
Engine Oil

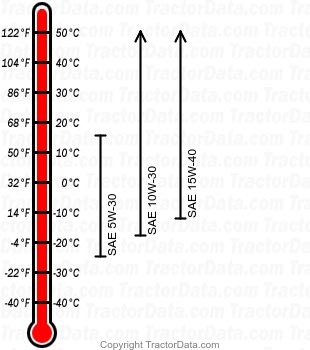

M115 diesel engine oil chart
Oil capacity20 qts
18.9 L
