International Harvester Titan 30-60
|
|
| Production | |
| Manufacturer | International Harvester |
| Standard-tread tractor | |
| Built in Milwaukee, Wisconsin, USA | |
| International Harvester Titan 30-60 Engine | |
| International Harvester 29.2L 2-cyl kerosene | |
| Fuel tank | 47 gal 177.9 L |
| Aux. fuel | 26.5 gal 100.3 L |
 Engine details ... | |
| International Harvester Titan 30-60 Power | |
| Drawbar (claimed) | 30 hp 22.4 kW |
| Belt (claimed) | 60 hp 44.7 kW |
| Mechanical | |
| Two-wheel drive | |
| Manual steering | |
| Open operator station with canopy. |
| Photos | |
| No photos of the International Harvester Titan 30-60 are currently available. To submit yours, email it to Peter@TractorData.com. Photos may only be used with the permission of the original photographer. | |
| Dimensions & Tires | |
| Weight | 20300 to 20600 pounds |
| Front tire | 44x10 |
| Rear tire | 72x24 |
 Full dimensions and tires ... | |
| Titan 30-60 Serial Numbers | |
| 1914 | TJ101 |
| 1914 | TK101 |
| 1915 | TK111 |
| 1915 | TU101 |
| 1916 | TU134 |
| 1917 | TU225 |
FAQ: How to read a serial number table. | |
| Belt Pulley | |
| Diameter | 30 inches 76 cm |
| Width | 10.5 inches 26 cm |
| References | |
 | |

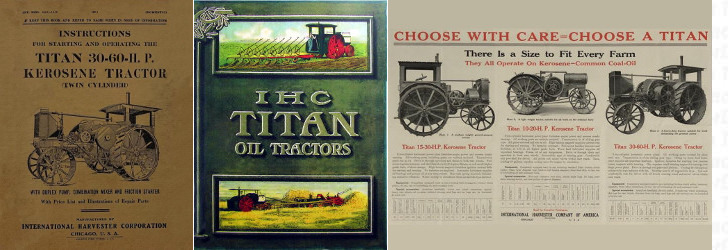

| Instructions for Starting and Operating the Titan 30-60-H.P. Kerosene Tractors (INT. 2025) published in 1916 | |
| IHC Titan Oil Tractors published by International Harvester | |
| Choose With Care = Choose a Titan published in 1916, by International Harvester |
