Tractors > CaseIH > MX230 Magnum

CaseIH MX230 Magnum Tests



CaseIH MX230 Magnum tractor photo
2003 - 2006
Magnum Series
Row-Crop tractor
Series map:
MX210
MX230
MX255
200.0hp
234.0hp
262.0hp
OCED Tractor Test 1826

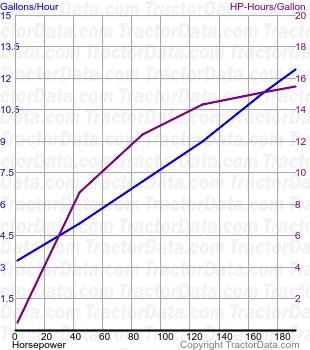

MX230 Magnum fuel use from test 414
OCED Tractor Test 1826
Diesel 18-speed 4WD
October 9 - 27, 2003
Link: OCED Tractor Test 1826 file
PTO performance
Max power216.55 hp
161.5 kW
Fuel use12.6 gal/hour
47.7 l/hour
Power at rated engine speed192.02 hp
143.2 kW
Fuel use12.4 gal/hour
46.9 l/hour
Drawbar performance
Max power165.17 hp
123.2 kW
Fuel use12.4 gal/hour
46.9 l/hour
Gear 7 used for power test.
Max pull19,628 lbs
8903 kg
Gear 4 used for pull test.
